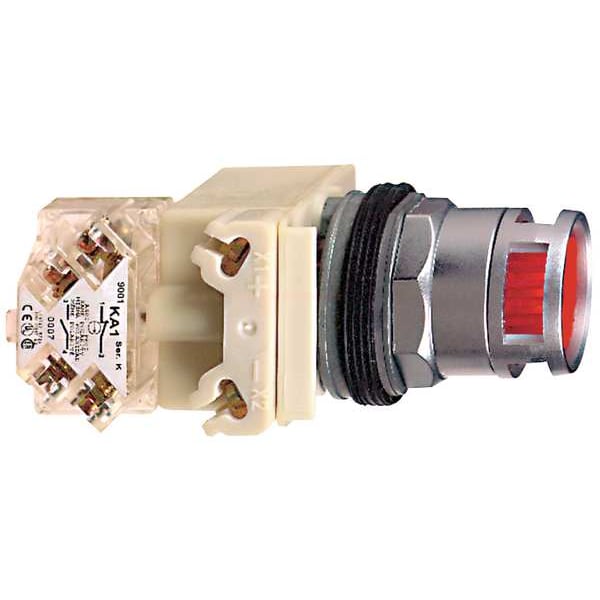

Botón de presión iluminado, 30 mm, 1NC/1NF, Rojo
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| Lamp Voltage | 120V AC |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Type of Operator | Round Extended Guarded Button |
| Lamp Type | LED |
| Contact Form | SPDT |
| Color | Red |
| Bezel | Chrome Plated Zinc Die Cast |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Illuminated Push Button |
| Bezel Material | Metal |
| NEMA Contact Rating Designation | A600, Q600 |
| Replacement Lamp | Mfr. No. 25501-010-27 |
| Voltage | 120V AC/DC |
| Basic Material | Metal |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE |
| IP Rating | IP66 |
| Contact Type | 1NO/1NC |
| Terminal Connection | Screw Clamp |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 120 V AC |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Series | 9001K |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Product Type | Push Button Operators |
| Mechanical Durability | 5,000,000 cycle |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.55 kA 250 V DC-13 || 0.27 kA 600 V DC-13 || 0.1 kA 125 V DC-13 |
| Operator Additional Information | metal guard |
| Light Source | LED |
| Product Certifications | UL 508 || NEMA |
| Shape Of Screw Head | cross slotted |
| [Icm] Rated Short-Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Bulb Base | BA 9s |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Contacts Material | silver alloy |
| Light Block Supply | direct |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Cap/Operator Or Lens Colour | red |
| Cad Overall Width | 54 mm |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Shape Of Signaling Unit Head | octagonal |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Operator Profile | red flush, unmarked, flush |
| Mounting Diameter | 30 mm |
| Contact Operation | standard |
| Cad Overall Height | 42 mm |
| Device Presentation | product |
| Light Source Colour | red |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Product Or Component Type | push-button |
| Terminals Description Iso N°1 | OF |
| Ambient Air Temperature For Storage | -40-70°C |
| Operating Position | any position |
| Protective Treatment | TC |
| Contacts Type And Composition | O, 1 C |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class II IEC 61140 |
| Cad Overall Depth | 106 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Short Name | 9001K |
| Connections - Terminals | screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| Positive Opening | without |
| [Us] Rated Supply Voltage | 120 V AC/DC, 120 V |
| Terminals Description Iso N°1 | OF |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Head Color | Red |
| Overall Width | 2.13 in |
| Overall Height | 1.65 in |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Legend Background Color | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | 120 V AC/DC |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Number of Indicator Lights | 0 |
| Operating Temperature - Minimum | -13 deg F |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Overall Depth | 4.17 in |
| Operator Illumination | Illuminated |
| Operator Voltage Rating - Maximum | 600 V AC |
| Manufacturer Warranty Length | 18 mo |
| Push Button Style | Flush |
| Legend Color | Not Applicable |
| Operator Material | Metal |
| Mushroom Head Diameter | Not Applicable |
| Package Quantity | 1 |
