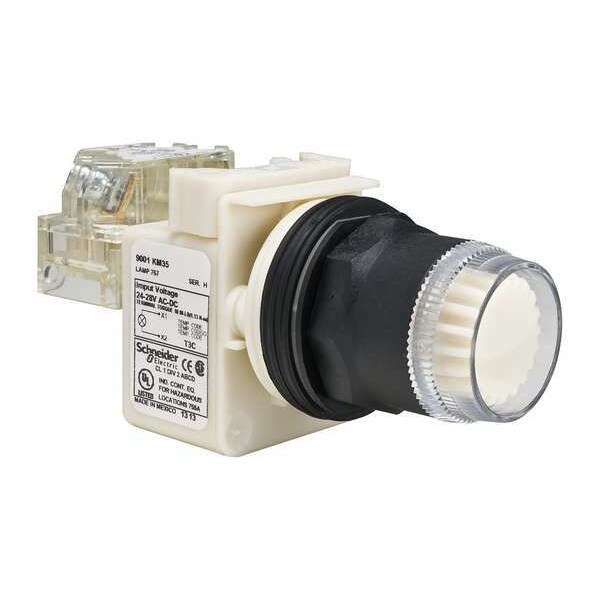

Botón de presión iluminado, 30 mm, 1NA/1NC, Blanco
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| Lamp Voltage | 24V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Lamp Type | Incandescent |
| Type of Operator | Round Guarded Button |
| Color | White |
| Contact Form | 1NO/1NC |
| Bezel | Corrosion Resistant Thermoplastic |
| Number of Operators | 1 |
| Item | Illuminated Push Button |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Thermoplastic |
| Lamp Module Type | Full Voltage |
| NEMA Contact Rating Designation | A600, Q600 |
| Voltage | 24 to 28V AC/DC |
| Standards | CE, CSA, UL Listed |
| Lamp Module Voltage | 24V AC/DC |
| Contact Type | 1NO/1NC |
| Terminal Connection | Pressure Plate |
| Replacement Lamp | Mfr. No. 1819 |
| Basic Material | Plastic |
| IP Rating | IP66 |
| Product Type | Push Button Operators |
| Head Color | White |
| Resistance Properties | Corrosion Resistant |
| Operator Material | Plastic |
| Push Button Style | Flush |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2, 6 |
| Package Quantity | 1 |
