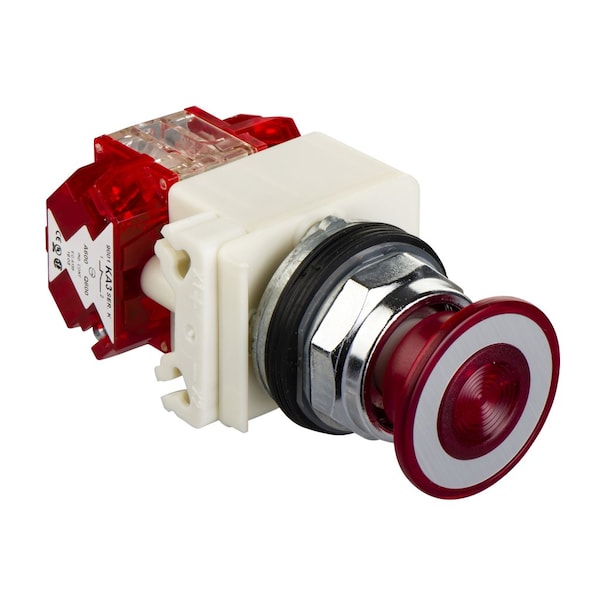

Botón pulsador iluminado, Harmony 9001K, metal, con forma de hongo de 41 mm, color rojo, 30 mm, 2 posiciones, empujar-tirar, 120V, 1 contacto normalmente cerrado + 1 contacto normalmente cerrado tarde.
| Item | PUSHBUTTON 30MM 110-120V 50-60HZ K |
|---|---|
| Bezel Material | metal |
| Standards | EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C 852 |
| Mounting Diameter | 30 mm |
| Bulb Base | BA 9s |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Type Of Operator | push-pull |
| Shape Of Signaling Unit Head | round |
| Cad Overall Depth | 103 mm |
| Operator Position Information | 2 positions |
| Connections - Terminals | screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V AC/DC |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Positive Opening | with IEC 60947-5-2 |
| Contacts Material | silver alloy |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Type And Composition | 1 NC late break + 1 NC, 1 NC late-break || 1 NC slow-break |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Protective Treatment | TC |
| Cad Overall Width | 54 mm |
| Operator Additional Information | screw-on plastic |
| Cad Overall Height | 42 mm |
| [Icm] Rated Short-Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA |
| Operator Profile | red mushroom Ø 41 mm, unmarked |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Terminals Description Iso N°1 | NC_OL || NC |
| Device Presentation | product |
| Light Block Supply | direct |
| Operating Position | any position |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Product Certifications | NEMA || UL 508 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Light Source | incandescent |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Mechanical Durability | 5,000,000 cycle |
| Device Short Name | 9001K |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | push-button, illuminated push button |
| Shape Of Screw Head | cross slotted |
| Cap/Operator or Lens Colour | red |
| Range of Product | Harmony 9001K |
| Package Quantity | 1 |
