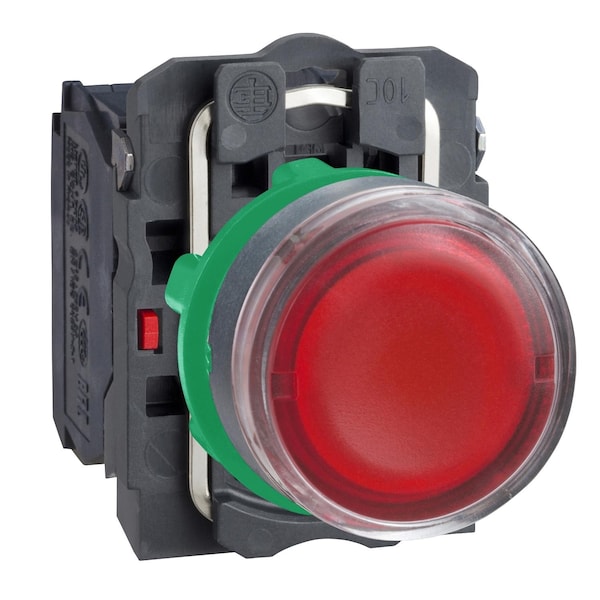

Botón de presión iluminado, Harmony XB5, plástico, color rojo, montaje al ras, 22mm, retorno por resorte, 1 contacto normalmente abierto (NO) + 1 contacto normalmente cerrado (NC), 220...240V.
| Type of Operator | spring return |
|---|---|
| Item | Red flush complete illum pushbutton 022 |
| Bezel Material | dark grey plastic |
| Standards | IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Depth | 101 mm |
| Height | 42 mm |
| Width | 30 mm |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Cap/Operator or Lens Colour | red |
| Head Type | Standard |
| Nema Degree of Protection | NEMA 13 || NEMA 4X |
| Contacts Usage | standard contacts |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Terminals Description Iso N°1 | NC, NO |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mounting Diameter | 22.5 mm |
| Mechanical Durability | 10,000,000 cycle |
| Product or Component Type | push-button |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| [Us] Rated Supply Voltage | 220...240 V AC 50/60 Hz |
| Contacts Type And Composition | 1 NO + 1 NC |
| Operating Force | 3.5 N, 3.8 N |
| Ik Degree of Protection | IK05 IEC 50102 |
| Ip Degree of Protection | IP66 IEC 60529 || IP69 || IP69K || IP67 |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Operator Profile | red flush, unmarked |
| Shape of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Light Source | incandescent |
| Signalling Type | steady |
| Short-Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Contacts Material | silver alloy |
| Operating Travel | 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel) |
| Shape of Signaling Unit Head | round |
| Overvoltage Category | class II IEC 60536 |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Fixing Collar Material | plastic |
| Bulb Base | BA 9s |
| Contact Operation | slow-break |
| Device Short Name | XB5 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Protective Treatment | TH |
| Operator Additional Information | with plain lens |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Ambient Air Temperature For Operation | -40-55°C |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Device Presentation | product |
| Range of Product | Harmony XB5 |
| Product Certifications | LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV |
| Package Quantity | 1 |
