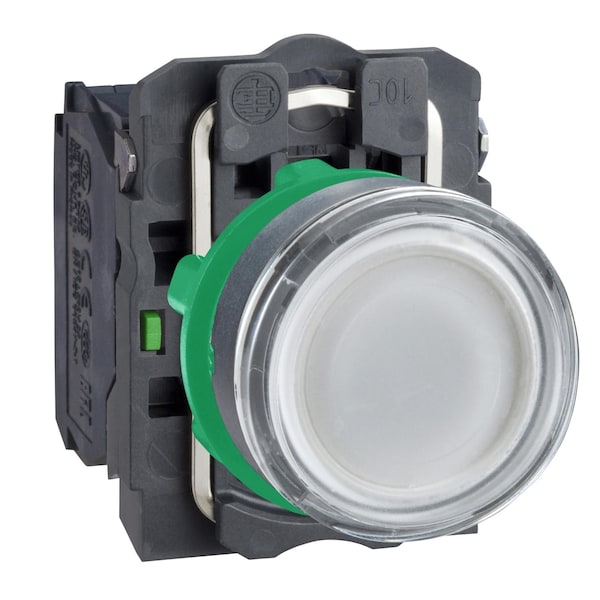

Botón de pulsación iluminado, Harmony XB5, plástico, blanco, empotrable, 22mm, LED universal, lente lisa, 1 contacto normalmente abierto + 1 contacto normalmente cerrado, 24V AC DC.
| Item | Pushbutton Led 24V 22MM Xb5B Options |
|---|---|
| Standards | EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1 |
| Width | 30 mm |
| Depth | 57 mm |
| Height | 42 mm |
| Supply Voltage Limits | 19.2-30 V DC || 21.6-26.4 V AC |
| Shape Of Signaling Unit Head | round |
| Operating Travel | 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Bulb Base | integral LED |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 || IP69K || IP67 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Head Type | Standard |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -40-70°C |
| Contact Operation | slow-break |
| Operator Additional Information | with plain lens |
| Ik Degree Of Protection | IK05 IEC 50102 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electromagnetic Emission | class B IEC 55011 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Mechanical Durability | 10,000,000 cycle |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Product Certifications | GL || DNV || CSA || BV || UL Listed || LROS (Lloyds register of shipping) |
| Product Or Component Type | illuminated push-button |
| Service Life | 100000 h at rated voltage and 25°C |
| Terminals Description Iso N°1 | NO || NC |
| Contacts Type And Composition | 1 NO + 1 NC |
| Fixing Collar Material | plastic |
| Mounting Diameter | 22 mm |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Protective Treatment | TH |
| Type Of Operator | spring return |
| Operating Force | 3.5 N NC changing electrical state || 3.8 N |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Light Source | universal LED |
| Device Presentation | product |
| Contacts Usage | contacts |
| Overvoltage Category | class II IEC 60536 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Device Short Name | XB5 |
| Bezel Material | plastic |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Current Consumption | 18 mA |
| Cap/Operator Or Lens Colour | white |
| Operator Profile | white flush, unmarked |
| Contacts Material | silver alloy |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Signalling Type | steady |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
