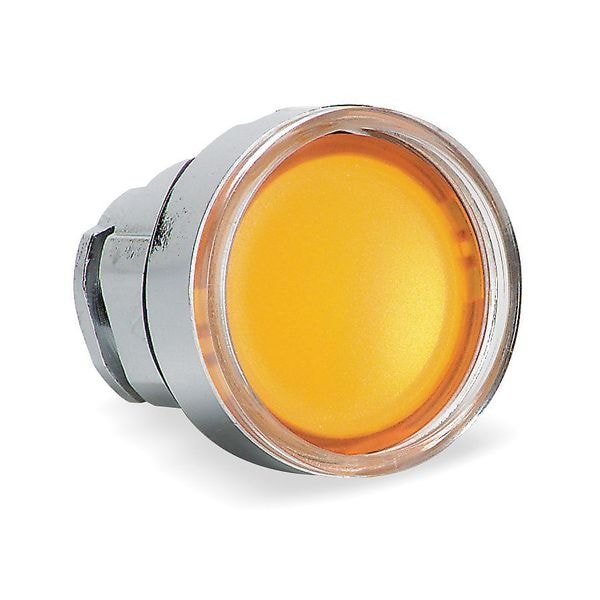

Operador de botón pulsador iluminado, 22 mm, amarillo
| Item | Flush Push Button |
|---|---|
| Basic Material | Metal |
| Features | Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness |
| Legend | Not Applicable |
| Type of Operator | Flush Button |
| Lamp Voltage | Dependent on Module Used |
| Lamp Type | No Lamp Module Included |
| Color | Yellow |
| Number of Operators | 1 |
| NEMA Rating | 13, 4X |
| Series | XB4 |
| Size | 22 mm |
| Bezel | Metal |
| Standards | Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508 |
| Head Material | Metal |
| Action | Maintained |
| Bezel Material | Metal |
| Lamp Module Type | No Lamp Module Included |
| Lamp Module Voltage | Module Not Included |
| IP Rating | IP66 |
| Terminal Connection | Not Applicable |
| Legend Color | Not Applicable |
| Electrical Composition Code | M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Head Type | Standard |
| Mechanical Durability | 500,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | basic element |
| Device Short Name | ZB4 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
| Mounting Diameter | 22 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Operator Profile | orange flush, unmarked |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Shape Of Signaling Unit Head | round |
| Cad Overall Depth | 30 mm |
| Product Compatibility | universal LED |
| Product Certifications | CSA || BV || UL Listed || LROS (Lloyds register of shipping) || GL || DNV |
| Product Or Component Type | head for illuminated push-button |
| Ambient Air Temperature For Operation | -40-70°C |
| Protective Treatment | TH |
| Overvoltage Category | class I IEC 60536 |
| Head Color | Orange |
| Mushroom Head Diameter | Not Applicable |
| Product Type | Push Button Operators |
| Operating Temperature - Maximum | 158 deg F |
| Overall Height | 1.14 in |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Hazardous Location Specification | Not Rated |
| Operator Illumination | Illuminated |
| Overall Width | 1.14 in |
| Operating Temperature - Minimum | -40 deg F |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Maintained Action Release | Push |
| Operator Material | Metal |
| Overall Depth | 1.18 in |
| Number of Indicator Lights | 1 |
| Legend Background Color | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Push Button Style | Flush |
| Package Quantity | 1 |
