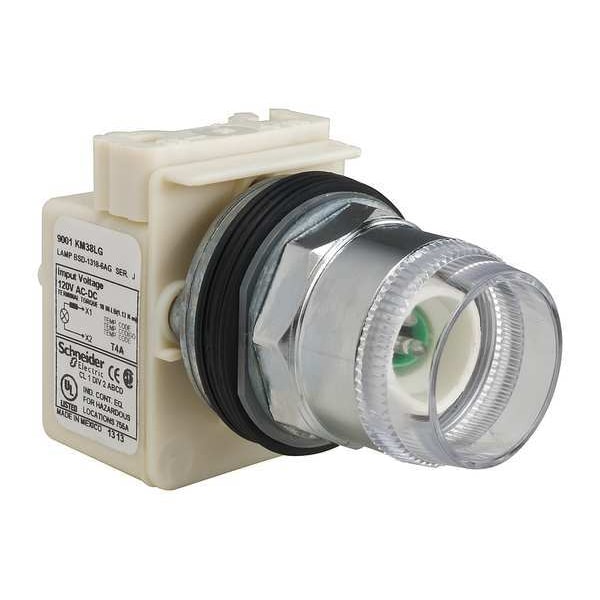

Operador de botón pulsador iluminado, 30 mm, verde.
| Item | Flush Push Button |
|---|---|
| Basic Material | Metal |
| Legend | Not Applicable |
| Lamp Voltage | 120V AC |
| Type of Operator | Full Guarded Button |
| Lamp Type | LED |
| Color | Green |
| Number of Operators | 1 |
| NEMA Rating | 12, 3R, 4 |
| Series | 9001K |
| Size | 30 mm |
| Bezel | Metal |
| Standards | REACH Free of SVHC, RoHS |
| Action | Momentary |
| Head Material | Metal |
| Bezel Material | Metal |
| Lamp Module Type | Full Voltage |
| IP Rating | IP66 |
| Lamp Module Voltage | 120 V AC |
| Terminal Connection | Screw Clamp |
| Legend Color | Not Applicable |
| Operator Profile | flush |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without cap |
| Device Short Name | 9001K |
| Light Source Colour | green |
| Mounting Diameter | 30 mm |
| [Us] Rated Supply Voltage | 120 V |
| Product Or Component Type | head for illuminated push-button |
| Contacts Type And Composition | without contact block |
| Operator Additional Information | plastic guard |
| Overall Height | 1.62 in |
| Maintained Action Release | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 3.07 in |
| Product Type | Push Button Operators |
| Legend Background Color | Not Applicable |
| Head Color | Not Applicable |
| Operator Material | Metal |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Lamp Voltage - Maximum | 120 V AC/DC |
| Operator Illumination | Illuminated |
| Hazardous Location Specification | Not Rated |
| Overall Width | 2.13 in |
| Panel Cutout Diameter | 30 mm |
| Push Button Style | Flush |
| Mushroom Head Diameter | Not Applicable |
| Number of Indicator Lights | 1 |
| Package Quantity | 1 |
