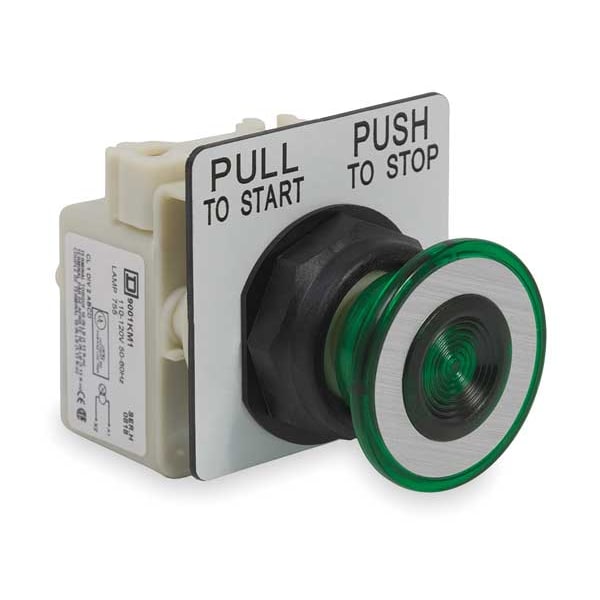

Operador de botón pulsador iluminado, de 30 mm, verde.
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| Lamp Voltage | 6V AC |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Lamp Type | LED |
| Type of Operator | 41mm Mushroom Head |
| Color | Green |
| Bezel | Plastic |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Plastic |
| Terminal Connection | Screw Clamp |
| IP Rating | IP65 |
| Lamp Module Voltage | 120 V AC |
| Basic Material | Plastic |
| Lamp Module Type | Transformer |
| Replacement Lamp | 4VCW2 |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508 |
| Features | Visually Distinct at a Distance, Snap-Fit Assembly |
| Series | 9001SK |
| Operator Position Information | 2 positions |
| Supply Frequency | 50 to 60 Hz |
| Device Short Name | 9001SK |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Mechanical Durability | 5,000,000 cycle |
| Operator Profile | mushroom Ø 41 mm |
| Operator Additional Information | screw-on plastic |
| Light Source | bulb |
| Cap/Operator Or Lens Colour | green |
| Mounting Diameter | 30 mm |
| [Us] Rated Supply Voltage | 110 to 120 V |
| Bulb Base | BA 9s |
| Light Block Supply | via integral transformer |
| Ip Degree Of Protection | IP66 |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Or Component Type | head for illuminated push-button |
| Operator Illumination | Illuminated |
| Overall Width | 2.13 in |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Number of Indicator Lights | 1 |
| Maintained Action Release | Push, Pull |
| Legend Background Color | Not Applicable |
| Overall Height | 1.62 in |
| Push Button Style | Mushroom Head |
| Operator Material | Plastic |
| Legend Color | Not Applicable |
| Product Type | Push Button Operators |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | 120 V AC |
| Mushroom Head Diameter | 40 mm |
| Head Color | Green |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
