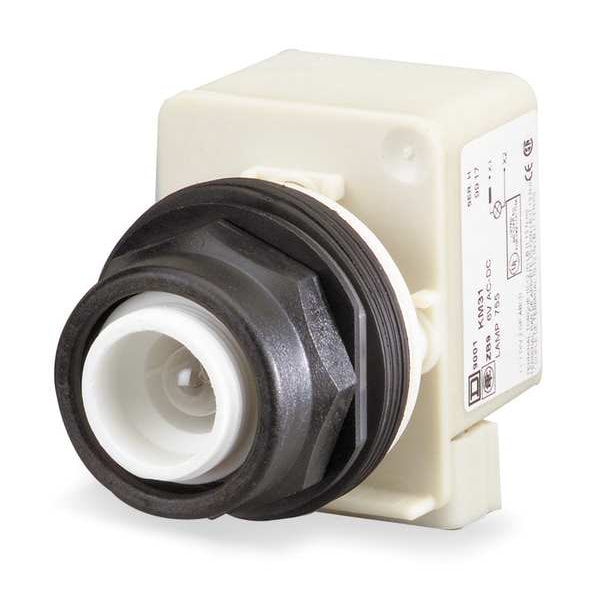

Operador de botón de empuje iluminado, 30 mm, sin tapa.
| Item | Extended Push Button |
|---|---|
| Basic Material | Plastic |
| Features | Snap-Fit Assembly |
| Legend | Not Applicable |
| Type of Operator | No Guard |
| Lamp Voltage | 6V AC |
| Color | No Cap |
| Lamp Type | Incandescent |
| Number of Operators | 1 |
| NEMA Rating | 12, 3R, 4X |
| Series | 9001SK |
| Bezel | Plastic |
| Size | 30 mm |
| Standards | CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR |
| Head Material | Plastic |
| Action | Momentary |
| Bezel Material | Plastic |
| IP Rating | IP64 |
| Terminal Connection | Screw Clamp |
| Lamp Module Voltage | 120 V AC |
| Replacement Lamp | 4VCW2 |
| Lamp Module Type | Transformer |
| Legend Color | Not Applicable |
| Bulb Base | BA 9s |
| Cap/Operator Or Lens Colour | without cap |
| [Us] Rated Supply Voltage | 110 to 120 V |
| Operator Additional Information | without guard |
| Operator Profile | projecting |
| Device Short Name | 9001SK |
| Contacts Type And Composition | without contact block |
| Light Source | bulb |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Shape Of Signaling Unit Head | octagonal |
| Product Certifications | CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR |
| Ip Degree Of Protection | IP64 |
| Supply Frequency | 50 to 60 Hz |
| Product Or Component Type | head for illuminated push-button |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer, via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz |
| Panel Cutout Diameter | 30 mm |
| Operator Material | Plastic |
| Manufacturer Warranty Length | 18 mo |
| Maintained Action Release | Not Applicable |
| Head Color | Not Applicable |
| Product Type | Push Button Operators |
| Number of Indicator Lights | 1 |
| Lamp Voltage - Maximum | 120 V AC |
| Overall Depth | 2.6 in |
| Overall Height | 1.62 in |
| Push Button Style | Extended |
| Overall Width | 2.13 in |
| Operator Illumination | Illuminated |
| Hazardous Location Specification | Not Rated |
| Mushroom Head Diameter | Not Applicable |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Package Quantity | 1 |
