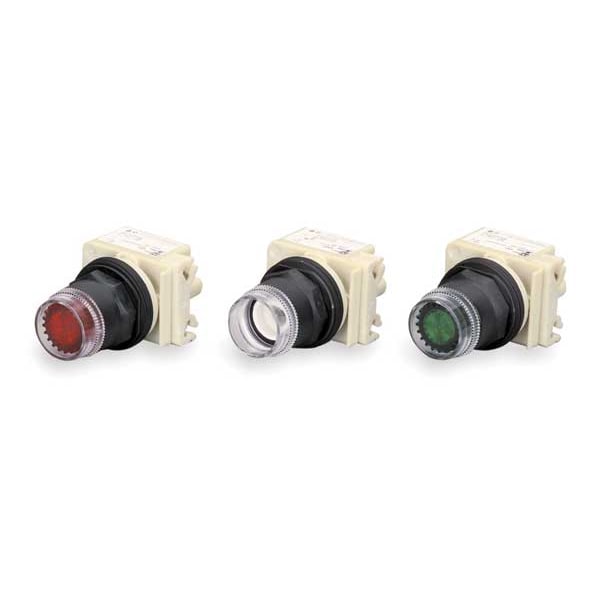

Operador de botón pulsador iluminado, 30 mm, Rojo
| Item | Flush Push Button |
|---|---|
| Basic Material | Plastic |
| Features | Visually Distinct at a Distance, High Guard Head |
| Legend | Not Applicable |
| Lamp Voltage | 6V AC |
| Type of Operator | Full Guarded Button |
| Color | Red |
| Lamp Type | Incandescent |
| Number of Operators | 1 |
| NEMA Rating | 12, 3R, 4X |
| Series | 9001SK |
| Bezel | Plastic |
| Size | 30 mm |
| Standards | CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR |
| Head Material | Plastic |
| Action | Momentary |
| Bezel Material | Plastic |
| Terminal Connection | Screw Clamp |
| IP Rating | IP66 |
| Lamp Module Type | Transformer |
| Replacement Lamp | 4VCW2 |
| Lamp Module Voltage | 120 V AC |
| Legend Color | Not Applicable |
| Shape Of Signaling Unit Head | octagonal |
| Mounting Diameter | 30 mm |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Product Certifications | UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE |
| Supply Frequency | 50 to 60 Hz |
| Operator Profile | flush |
| [Us] Rated Supply Voltage | 110 to 120 V |
| Light Block Supply | via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz, via integral transformer |
| Operator Additional Information | plastic guard |
| Cap/Operator Or Lens Colour | red |
| Ip Degree Of Protection | IP64 |
| Product Or Component Type | head for illuminated push-button |
| Bulb Base | BA 9s |
| Contacts Type And Composition | without contact block |
| Light Source | bulb |
| Device Short Name | 9001SK |
| Product Type | Push Button Operators |
| Lamp Voltage - Maximum | 120 V AC |
| Operator Illumination | Illuminated |
| Overall Depth | 3.07 in |
| Operator Material | Plastic |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Head Color | Red |
| Overall Height | 1.62 in |
| Panel Cutout Diameter | 30 mm |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Mushroom Head Diameter | Not Applicable |
| Legend Background Color | Not Applicable |
| Number of Indicator Lights | 1 |
| Push Button Style | Flush |
| Overall Width | 2.13 in |
| Hazardous Location Specification | Not Rated |
| Maintained Action Release | Not Applicable |
| Package Quantity | 1 |
