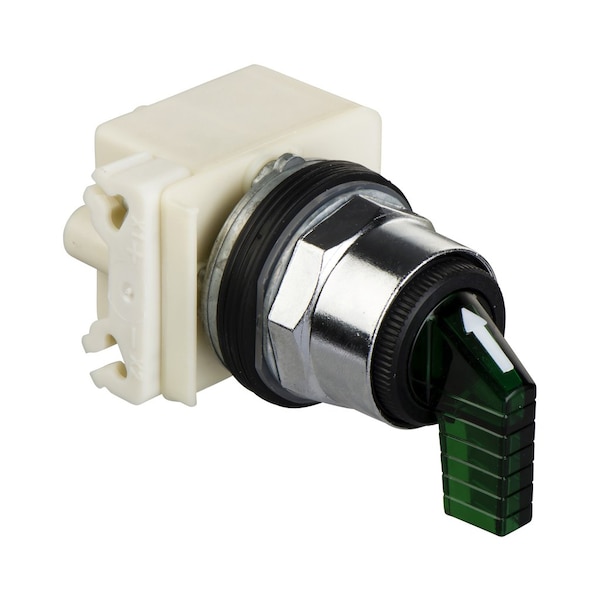

Cabeza de interruptor selector iluminado, Harmony 9001K, metal, mango largo, verde, 30mm, 2 posiciones, fija, LED verde, 24-28V.
| Item | SELECTOR SWITCH 600VAC 10A 30MM T-K |
|---|---|
| Bezel Material | metal |
| Standards | UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Light Block Colour | green |
| Mechanical Durability | 500,000 cycle |
| Contacts Type And Composition | without contact block |
| Light Source | LED |
| Product Or Component Type | head for illuminated selector switch |
| Device Presentation | basic element |
| Operator Position Information | 2 positions |
| Device Short Name | 9001K |
| Mounting Diameter | 30 mm |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Operator | stay put |
| Electrical Shock Protection Class | class II IEC 61140 |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Product Compatibility | 9001KA2 side 1 or 2 |
| Shape Of Signaling Unit Head | octagonal |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Product Certifications | UL 508 || NEMA |
| Light Block Supply | direct |
| Operator Profile | green long handle |
| Bulb Base | BA 9s |
| Ambient Air Temperature For Operation | -25-70°C |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Range of Product | Harmony 9001K |
| Cam Profile | 5 |
| Package Quantity | 1 |
