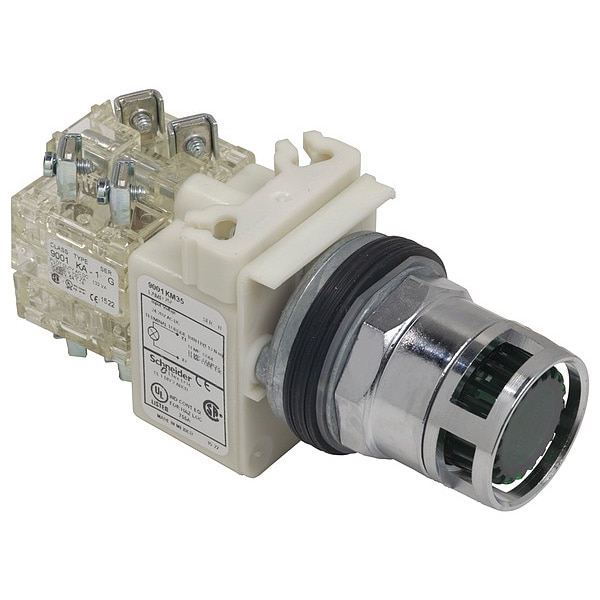

IllumPushButton, FullVolt, Verde, 2NA/2NC
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Legend/Background Color | No Legend |
| Head Material | Metal |
| Lamp Type | LED |
| Contact Form | 2NO/2NC |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Illuminated Push Button |
| Contact Rating | 10A @ 600V AC |
| Bezel Material | Metal |
| Standards | REACH, RoHS, WEEE |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Terminal Connection | Screw Clamp |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Series | 9001K |
| Lamp Module Type | Full Voltage |
| IP Rating | IP20 |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Operator Illumination | Illuminated |
| Legend Color | Not Applicable |
| Maintained Action Release | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Head Color | Green |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Operating Temperature - Minimum | -22 deg F |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Number of Indicator Lights | 0 |
| Lamp Voltage - Maximum | 28 V AC/DC |
| Operator Material | Metal |
| Panel Cutout Diameter | 30 mm |
| Operating Temperature - Maximum | 140 deg F |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Operator Voltage Rating - Maximum | 600 V AC |
| Legend Background Color | Not Applicable |
| Package Quantity | 1 |
