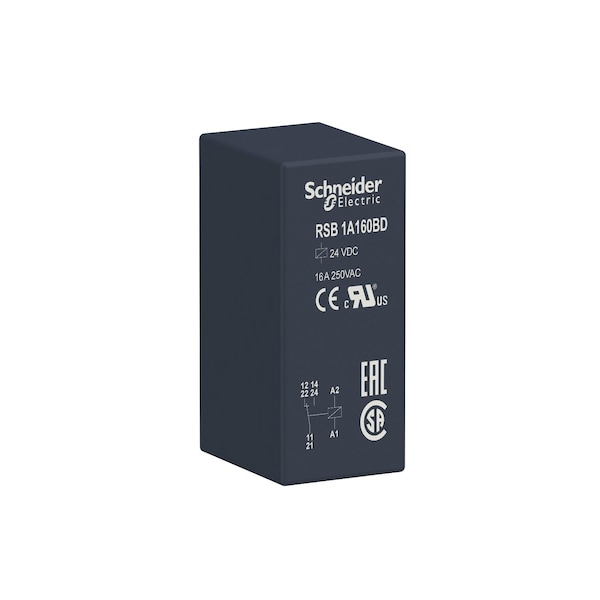

Relé de interfaz plug-in, 16 A, 1 contacto normalmente abierto, 24 V CC, 1 contacto normalmente abierto.
| Item | Interface plug-in relay,16 A,1 CO,24 |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 16A @ 250V AC |
| DC Contact Rating - Relay | 16 A @ 28 V |
| Contact Form - Relay | 1 C/O |
| Power Consumption - Relay | 0.45 W |
| Contact Material | Silver Alloy |
| Standards | UL 508; CSA C22.2 No 14; EN/IEC 61810-1; CE; EAC |
| Switching Power | Max 4000 VA/448 W; Min 120 mW 10 mA, 12 V |
| Operating Time | 20 ms operating || 20 ms reset |
| Operating Temp. Range | -40-85°C DC) |
| Protection Category | RT I |
| Switching Voltage | 12/300 V DC |
| Coil Resistance | 1,440 ohms |
| Dielectric Strength | 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact |
| Current Rating | 16 A AC-1/DC-1) NO IEC; 8 A AC-1/DC-1) NC IEC |
| Series | RSB; interface relay |
| Pin Shape | Flat |
| Shock Resistance | 10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27 |
| Average Resistance | 1440 Ohm AC 20°C +/- 10 % |
| [Ithe] Conventional Enclosed Thermal Current | 16 A -40-40°C |
| Vibration Resistance | +/- 1 mm 10-55 Hz)IEC 60068-2-6 |
| Test Levels | level A group mounting |
| Marking | CE |
| Average Coil Consumption | 0.45 W |
| Range of Product | Harmony Electromechanical Relays |
| Load Current | 16 A 250 V AC, 16 A 28 V DC |
| Minimum Switching Current | 10 mA |
| Product or Component Type | plug-in relay |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Maximum Switching Voltage | 300 V DC IEC |
| Device Short Name | RSB |
| Maximum Switching Capacity | 4000 VA/448 W |
| [Uc] Control Circuit Voltage | 24 V DC |
| Ambient Air Temperature For Operation | -40-85°C DC |
| Ambient Air Temperature For Storage | -40-85°C |
| Operating Rate | <= 600 cycles/hour under load, <= 18000 cycles/hour no-load |
| Mechanical Durability | 30,000,000 cycle |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Status Led | without |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Device Presentation | complete product |
| Control Type | without push-button |
| [Ie] Rated Operational Current | 16 A AC-1/DC-1) NO IEC, 8 A AC-1/DC-1) NC IEC |
| Contact Operation | standard |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
| Electrical Durability | 100000 cycles, 16 A at 250 V, AC-1 NO, 100000 cycles, 8 A at 250 V, AC-1 NC |
| Operating Position | any position |
| [Ui] Rated Insulation Voltage | 400 V IEC 60947 |
| [Ue] Rated Operational Voltage | 16.8...36 V DC |
| Series Name | interface relay |
| Package Quantity | 1 |
