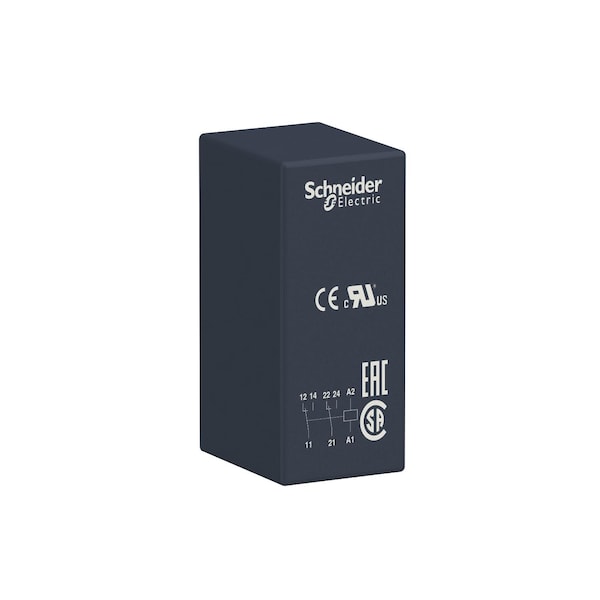

Interfaz de relé plug-in, 8 A, 2 cambios, 48 V, 48V DC Coil Volts, 2 cambia de contacto.
| Item | Interface plug-in relay,8 A,2 CO,48 V |
|---|---|
| Coil Volts | 48V DC |
| AC Contact Rating - Relay | 8A @ 250V AC |
| DC Contact Rating - Relay | 8 A @ 28 V |
| Contact Form - Relay | 2 C/O |
| Power Consumption - Relay | 0.45 W |
| Contact Material | Silver Alloy |
| Standards | CSA C22.2 No 14; EN/IEC 61810-1 508; CE; EAC |
| Operating Temp. Range | -40-85°C DC) |
| Operating Time | 20 ms operating || 20 ms reset |
| Dielectric Strength | 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact |
| Protection Category | RT I |
| Switching Voltage | 12/300 V DC |
| Series | RSB; interface relay |
| Switching Power | Max 2000 VA/224 W; Min 120 mW 10 mA, 12 V |
| Current Rating | 4 A AC-1/DC-1) NC IEC; 8 A AC-1/DC-1) NO IEC |
| Pin Shape | Flat |
| Coil Resistance | 5,520 ohms |
| Rated Insulation Voltage | 400 V IEC 60947 |
| Series Name | interface relay |
| Test Levels | level A group mounting |
| Control Circuit Voltage | 48 V DC |
| Product Or Component Type | Plug-in relay |
| Operating Position | any position |
| Ambient Air Temperature For Operation | -40 to 185°F DC |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Conventional Enclosed Thermal Current | 8 A -40 to 104°F (-40 to 40°C) |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
| Product Certifications | CSA, UL, EAC |
| Operating Rate | Less than or Equal to 600 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load |
| Drop-Out Voltage Threshold | Greater than or Equal to 0.1 Uc DC |
| Average Coil Consumption | 0.45 W |
| Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Contact Operation | Standard |
| Electrical Durability | 100000 cycles, 8 A at 250 V, AC-1 NO; 100000 cycles, 4 A at 250 V, AC-1 NC |
| Status LED | Without |
| Vibration Resistance | +/- 1 mm 10 to 55 Hz)IEC 60068-2-6 |
| Mechanical Durability | 30,000,000 cycle |
| Rated Operational Voltage | 33.6 to 72 V DC |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| Marking | CE |
| Maximum Switching Voltage | 300 V DC IEC |
| Maximum Switching Capacity | 2000 VA/224 W |
| Resistive Rated Load | 8 A 250 V AC; 8 A 28 V DC |
| Shock Resistance | 10 gn 11 ms) not operating IEC 60068-2-27; 5 gn 11 ms) in operation IEC 60068-2-27 |
| Control Type | without push-button |
| Average Coil Resistance | 5520 Ohm AC 20°C +/- 10% |
| Device Presentation | complete product |
| Minimum Switching Voltage | 12 V |
| Minimum Switching Current | 10 mA |
| [Ithe] Conventional Enclosed Thermal Current | 8 A -40-40°C |
| Device Short Name | RSB |
| Average Resistance | 5520 Ohm AC 20°C +/- 10 % |
| [Ie] Rated Operational Current | 4 A AC-1/DC-1) NC IEC, 8 A AC-1/DC-1) NO IEC |
| [Ue] Rated Operational Voltage | 33.6...72 V DC |
| Range of Product | Harmony Electromechanical Relays |
| Load Current | 8 A 250 V AC, 8 A 28 V DC |
| Package Quantity | 1 |
