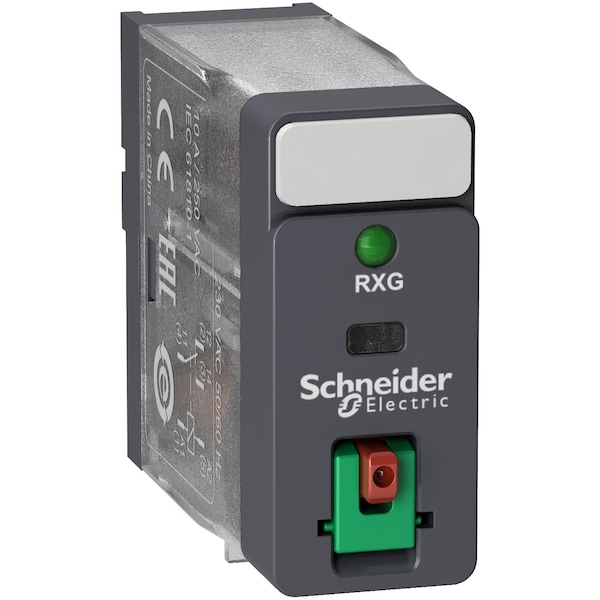

Interfaces para relé de conexión, relés electromecánicos Harmony, 10A, 1 contacto normalmente abierto, con LED, botón de prueba bloqueable, para 230V CA.
| Item | Relay,1CO 10A@250VAC,230VAC,Coil Led+ltb |
|---|---|
| Standards | IEC 61810-1 || CSA C22.2 No 14 || UL 508 |
| Product Or Component Type | Plug-in relay |
| Mounting Position | any position |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| Protection Category | RT I |
| Status Led | with |
| Control Circuit Voltage Limits | 0.8...1.1 Uc AC |
| Resistance | 23500 Ohm +/- 15 % |
| Operating Time | 20 ms |
| Test Levels | level A |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Local Signalling | Flag |
| Pollution Degree | 2 |
| Product Certifications | CSA || EAC || UL || CE || DNV-GL |
| Mechanical Durability | 10000000 cycles |
| Overvoltage Category | III |
| [Ie] Rated Operational Current | 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL |
| Device Short Name | RXG |
| Ambient Air Temperature For Storage | -40-85°C |
| Contacts Type And Composition | O, 1 C |
| Contacts Material | silver alloy |
| Relative Humidity | 10-85 % |
| Series Name | interface relay |
| Load Current | 10 A 250 V AC |
| Shock Resistance | 20 gn in operation || 100 gn not in operation |
| Electrical Insulation Class | class F |
| [Ithe] Conventional Enclosed Thermal Current | 10 A -40-55°C |
| Ip Degree Of Protection | IP40 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV 1.2/50µs |
| Torque Value | 0.8 N.m |
| Electrical Durability | 100000 cycles NO resistive at 55°C || 100000 cycles NC resistive at 55°C |
| [Ui] Rated Insulation Voltage | 250 V IEC || 300 V CSA || 300 V UL |
| [Uc] Control Circuit Voltage | 230 V AC 50/60 Hz |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation |
| Colour Of Cover | standard |
| Reset Time | 20 ms |
| Average Consumption | 0.82 VA 60 Hz |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Contact Resistance | 100 mOhm |
| Utilisation Coefficient | 0.2 |
| Maximum Switching Capacity | 2,500 VA |
| Operating Rate | <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load |
| Control Type | Lockable test button |
| Ambient Air Temperature For Operation | -40-70°C |
| Drop-Out Voltage Threshold | >= 0.3 Uc AC |
| Maximum Switching Voltage | 250 V AC || 30 V DC |
| Range of Product | Harmony Relays |
| Device Presentation | complete product |
| Package Quantity | 1 |
