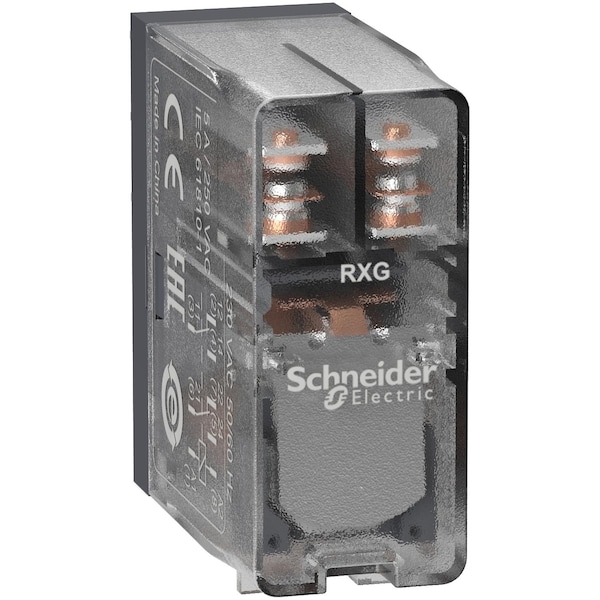

Relé electromecánico Harmony de 5A y 2 contactos normalmente abiertos, con cubierta transparente y alimentación de 24V CA.
| Item | Relay,2CO 5A@250VAC,24VAC,Coil Clear |
|---|---|
| Standards | UL 508 || CSA C22.2 No 14 || IEC 61810-1 |
| Device Short Name | RXG |
| Series Name | interface relay |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV 1.2/50µs |
| Reset Time | 20 ms |
| Contact Resistance | 100 mOhm |
| Electrical Durability | 100000 cycles NO resistive at 55°C || 100000 cycles NC resistive at 55°C |
| [Ithe] Conventional Enclosed Thermal Current | 5 A -40-55°C |
| Ambient Air Temperature For Storage | -40-85°C |
| Operating Time | 20 ms |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Load Current | 5 A 250 V AC |
| Contacts Material | silver alloy |
| Ambient Air Temperature For Operation | -40-70°C |
| Maximum Switching Capacity | 1,250 VA |
| Contacts Type And Composition | O, 2 C |
| Protection Category | RT I |
| Torque Value | 0.8 N.m |
| Mounting Position | any position |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Ip Degree Of Protection | IP40 |
| [Ui] Rated Insulation Voltage | 250 V IEC || 300 V CSA || 300 V UL |
| Relative Humidity | 10-85 % |
| Pollution Degree | 2 |
| Product Certifications | UL || CE || EAC || CSA || DNV-GL |
| Control Circuit Voltage Limits | 0.8...1.1 Uc AC |
| Drop-Out Voltage Threshold | >= 0.3 Uc AC |
| Maximum Switching Voltage | 250 V AC || 30 V DC |
| Colour Of Cover | transparent |
| Resistance | 260 Ohm +/- 10 % |
| [Ie] Rated Operational Current | 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL |
| Electrical Insulation Class | class F |
| Utilisation Coefficient | 0.2 |
| Operating Rate | <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load |
| Minimum Switching Capacity | 50 mW at 10 mA, 5 V DC |
| Product Or Component Type | Plug-in relay |
| Test Levels | level A |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation |
| Average Consumption | 0.82 VA 60 Hz |
| Overvoltage Category | III |
| Mechanical Durability | 10000000 cycles |
| Shock Resistance | 20 gn in operation || 100 gn not in operation |
| Device Presentation | complete product |
| Range of Product | Harmony Relays |
| Package Quantity | 1 |
