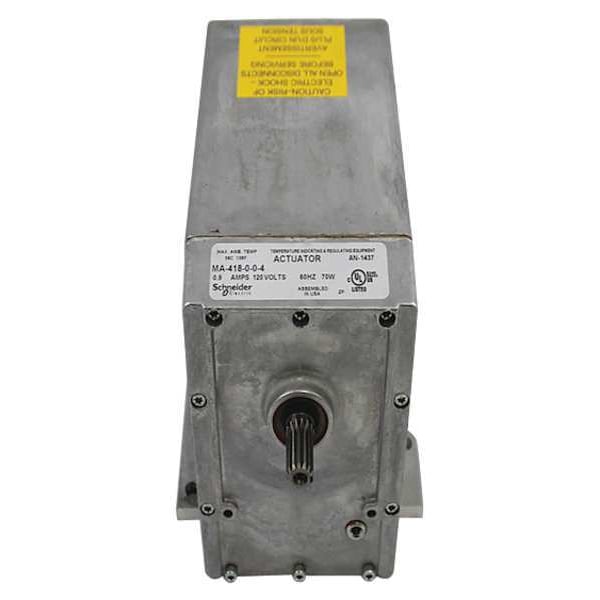

Invensys 120VAC Actuator, 60 lb Torque
| Item | Electric Valve Actuator |
|---|---|
| Fits Brand | Schneider Electric |
| Includes | Actuator |
| Input Voltage | 120 V AC |
| Product Type | Valve Actuator |
| Minimum Operating Temperature | -40 deg F |
| Number of Auxiliary Switches | 0 |
| Overall Depth | 4-3/4 in |
| NEMA Rating | 4 |
| Rated Torque | 7 N-m |
| Overall Height | 5-3/4 in |
| Housing Material | Aluminum |
| Electrical Connection Type | Terminals |
| Maximum Operating Temperature | 136 deg F |
| Power Consumption | 70 W |
| Standards | CSA C22.2 No. 24 File LR 3728, UL873 File E9429 |
| Overall Width | 5-5/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
