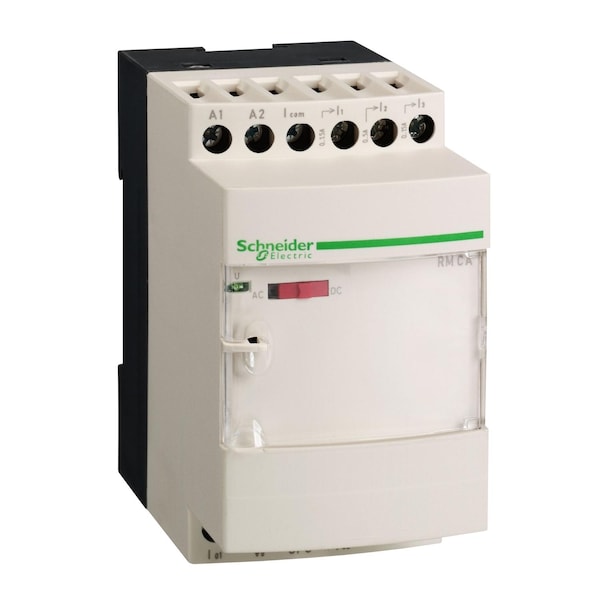

Convertidor analógico aislado, Harmony Analog, corriente de 0 a 15A a 0 a 10V o 4 a 20mA.
| Item | Voltage/Current Converter |
|---|---|
| Converts | 24V DC to 0V to 10V, 0mA to 20mA, and 4mA to 20mA |
| Mounting | DIN Rail, Mounting Plate |
| Hz | 50/60 Hz |
| Standards | IEC : CSA Certified; UL ; GL |
| Pollution Degree | 2 IEC 60664-1 |
| Protection Type | reverse polarity protection on output, short-circuit protection on output, overvoltage protection on output (+/- 30 V) |
| Measurement Error | +/- 5 % of full scale20°C temporary performance degradation when subject to electromagnetic interference) |
| Disturbance Radiated/Conducted | CISPR 11, CISPR 22 group 1 - class B |
| Surge Withstand | 0.5 kV 1.2/50µs IEC 61000-4-5 |
| Analogue Output Voltage | -15...0 V no input or input wire broken |
| Temperature Coefficient | 1000 ppm/°C 0...5 A, 2000 ppm/°C 0...15 A, 500 ppm/°C 0...1.5 A |
| Product or Component Type | voltage/current converter |
| [Ui] Rated Insulation Voltage | 2 kV |
| Range of Product | Harmony Analog |
| Vibration Resistance | 5 gn 10-100 Hz)IEC 60068-2-6 |
| Fixing Mode | by screws (mounting plate), clip-on (35 mm symmetrical DIN rail) |
| Local Signalling | for power ON LED (green) |
| Tightening Torque | 0.6-1.1 N.m |
| Fire Resistance | 850°C IEC 60695-2-1, 850°C UL |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Ambient Air Temperature For Operation | 0-50°C mounting side by side, 0-60°C 2 cm spacing |
| Ip Degree of Protection | IP20 terminal block), IP50 housing) |
| Analogue Output Type | current 0...20 mA <= 500 Ohm by cabling, current 4...20 mA <= 500 Ohm by cabling, voltage 0...10 V >= 100 kOhm by cabling |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply) |
| Current Consumption | <= 70 mA voltage output, <= 90 mA current output |
| Ambient Air Temperature For Storage | -40-85°C |
| Resistance To Electrostatic Discharge | 6 kV in contact)IEC 61000-4-2 level 3, 8 kV in air)IEC 61000-4-2 level 3 |
| Analogue Output Current | -30-0 mA 0...20 mA no input or input wire broken, 4-30 mA 4...20 mA no input or input wire broken |
| Repeat Accuracy | +/- 0.2 % full scale 20°C, +/- 0.6 % full scale 60°C |
| [Us] Rated Supply Voltage | 24 V DC +/- 20 %, isolated |
| Marking | CE |
| Clamping Connection Capacity | 2 x 1.5 mm², 1 x 2.5 mm² |
| Analogue Input Type | current 0...1.5 A AC/DC 50/60 Hz, current 0...15 A AC/DC 50/60 Hz, current 0...5 A AC/DC 50/60 Hz |
| Package Quantity | 1 |
