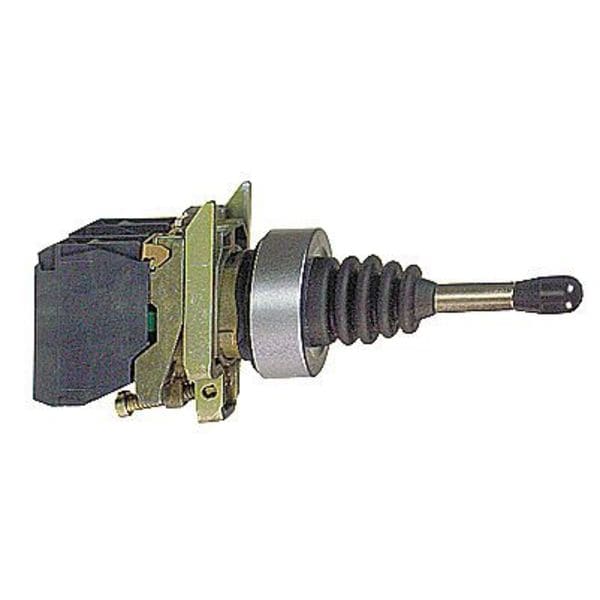

Operador de Joystick, 22mm, 2 Direcciones, Momentáneo
| Item | Joystick Operator |
|---|---|
| Size | 22 mm |
| Number of Directions | 2 |
| Contact Form | 1NO |
| Contact Rating | 10A @ 600V AC |
| Joystick Material | Metal |
| Action | Momentary |
| NEMA Rating | 13, 4X |
| Latching / Non-Latching | Non-Latching |
| Direction of Operation | Vertical |
| IP Rating | IP66 |
| NEMA Contact Rating Designation | R300 |
| Standards | China RoHS, EU RoHS, REACH, WEEE |
| Bezel | Chromium Plated Metal |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Mounting Diameter | 22 mm |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Product Or Component Type | joystick controller |
| Operator Position Information | 3 positions |
| Protective Treatment | TH |
| Contacts Usage | standard |
| Notch Per Direction | 1-1 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Operator Direction Information | 2 directions |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Fixing Collar Material | zamak |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Positive Opening | without |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Contact Operation | slow-break |
| Device Short Name | XD4 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Contacts Type And Composition | 1 NO |
| Mechanical Durability | 1,000,000 cycle |
| Ip Degree Of Protection | IP66 IEC 60529 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Shape Of Signaling Unit Head | round |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Type Of Operator | spring return to 0 position, long operating shaft 54 mm |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Device Presentation | complete product |
| Product Certifications | DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL || CSA |
| Ambient Air Temperature For Operation | -25-70°C |
| Contacts Material | silver alloy |
| Bezel Material | Metal |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Rated Operational Current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| DC Contact Rating | 0.1 A @ 250 V, 0.22 A @ 125 V |
| Latch Type | Non-Latching |
| Overall Width | 1.18 in |
| Series | XB4 |
| Shaft Length | 2.13 in |
| Manufacturer Warranty Length | 18 mo |
| Number of Positions | 2 |
| Switch Action | Momentary |
| NEMA Enclosure Rating | 13, 4X |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 4.29 in |
| AC Contact Rating | 1.5 A @ 240 V, 3 A @ 120 V |
| Package Quantity | 1 |
