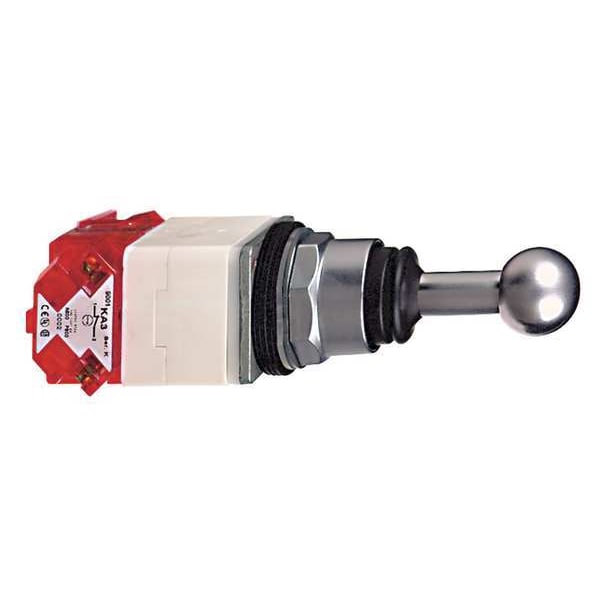

Operador de joystick de alta calidad de 30mm con 2 direcciones y función momentánea, ideal para control preciso en aplicaciones industriales.
| Item | Joystick Operator |
|---|---|
| Size | 30 mm |
| Number of Directions | 2 |
| Contact Form | 2NO |
| Contact Rating | 10A @ 600V AC |
| Joystick Material | Metal |
| Action | Momentary |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4 |
| Latching / Non-Latching | Latching |
| Direction of Operation | Vertical |
| IP Rating | IP66 |
| Standards | China RoHS, EU RoHS, REACH, WEEE |
| Bezel | Metal |
| NEMA Contact Rating Designation | A600, Q600 |
| Latch Type | Latching |
| Bezel Material | Metal |
| Number of Positions | 2 |
| DC Contact Rating | 0.10 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V |
| Series | 9001K |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Switch Action | Momentary |
| Shaft Length | 3.15 in |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4 |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
