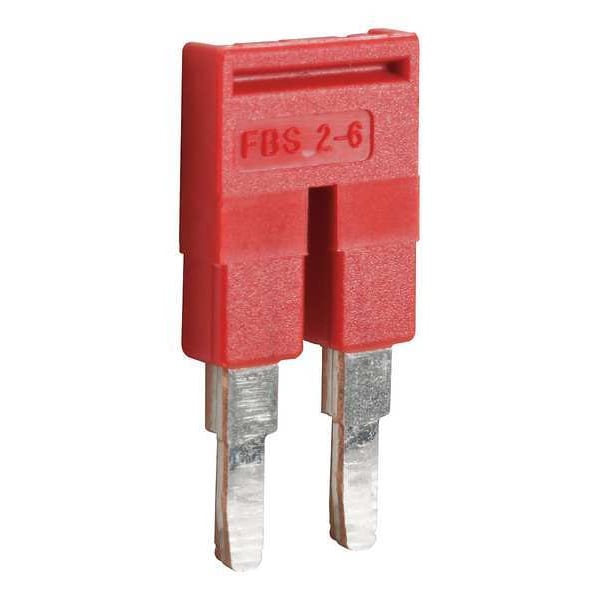

Puente, 2 polos, 0.91 pulgadas de longitud
| Item | Terminal Block Jumper |
|---|---|
| For Use With | Mfr. No. NSYTRV42, NSYTRV42BL, NSYTRV42PE |
| Length | 0.91 in |
| Number of Poles | 2 |
| Color | Red |
| Material | Polyamide 6.6, Copper Alloy |
| Width | 0.12 in |
| Height | 0.42 in |
| Length (Straight Wireway) | 0.91 in |
| Special Features | Mercury Free, Toxic Heavy Metal Free, Warranty 18 Months |
| RoHS Compliant | Yes |
| Compatible Manufacturer Model Number | NSYTRV42, NSYTRV42BL, NSYTRV42PE |
| Overall Length | 0.91 in |
| Compatible with Series | TRH IDC Terminal Block, TRP Push-In Terminal Block, TRR Spring Terminal Block, TRV Screw Terminal Block |
| Compatible with Product Type | TRH IDC Terminal Block, TRP Push-in Terminal Block, TRR Spring Terminal Terminal Block, TRV Screw Terminal Terminal Block |
| Insulation Material | Plastic |
| Contact Material | Copper |
| Number of Ways | 2 |
| Number Of Measurement Input | 3 || 2 || 6 || 1 || 4 |
| Range | Linergy |
| Product Name | Linergy TR |
| Number Of Terminals | 4 || 3 || 2 |
| Device Short Name | TRA |
| Cable Cross Section | 4-4 mm² |
| Accessory / Separate Part Category | connection accessory |
| Product Compatibility | TRV screw terminal terminal block || TRP push-in terminal block || TRR spring terminal terminal block || TRH IDC terminal block |
| Product Or Component Type | plug-in bridge |
| Package Quantity | 1 |
