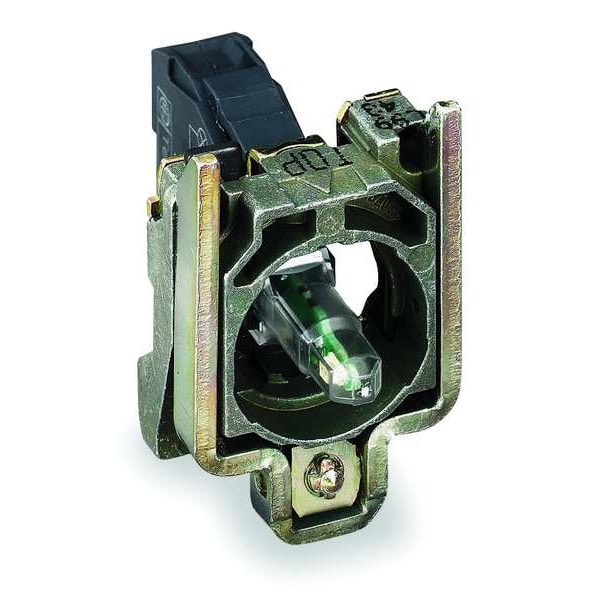

Módulo de lámpara, 22 mm, 120VCA, blanco, LED
| Item | Lamp Module |
|---|---|
| Voltage | 110 to 120V AC |
| Material of Construction | Chrome |
| Color | White |
| Lamp Type | LED |
| Terminal Connection | Screw Clamp |
| Contact Form | (X1-X2)PL |
| Size | 22 mm |
| Lamp Module Voltage | 120V AC |
| Lamp Module Type | Full Voltage |
| Basic Material | Zamak |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| IP Rating | Not Rated |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Lamp Voltage | 120V AC |
| Average Life | 100,000 hr |
| Body Material | Metal |
| Hz | 50/60 Hz |
| Type | Steady Signal |
| Manufacturer Warranty Length | 18 mo |
| Includes Bulb | Yes |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Compatible with Brand | Schneider |
| Voltage Rating - Maximum | 120 V AC |
| Compatible Panel Cutout Diameter | 22 mm |
| Overall Depth | 1.46 in |
| Overall Width | 1.18 in |
| Overall Height | 1.85 in |
| Compatible with Series | XB4 |
| Compatible Operator | Selector Switch |
| Package Quantity | 1 |
