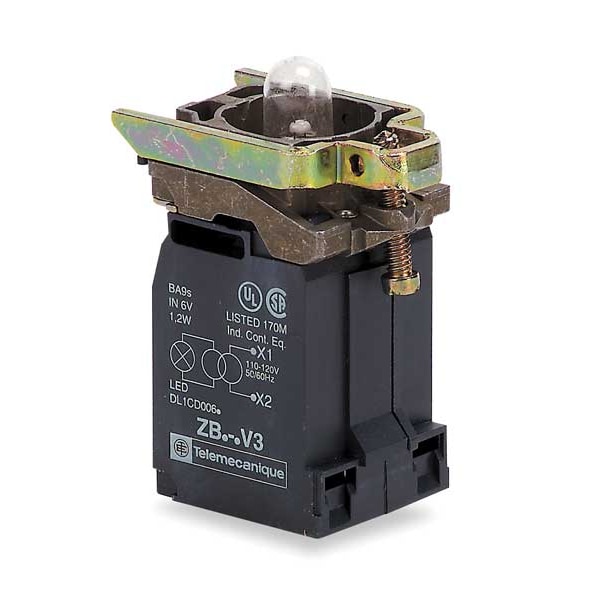

Módulo de lámpara, 22mm, 230/240VCA, incandescente
| Item | Lamp Module |
|---|---|
| Size | 22 mm |
| Color | Clear |
| Lamp Voltage | 6V AC |
| IP Rating | Not Rated |
| Terminal Connection | Screw Clamp |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Lamp Type | Incandescent |
| Lamp Module Type | Transformer |
| Material of Construction | Chrome |
| Lamp Module Voltage | 240 V AC |
| Body Material | Metal |
| Product Or Component Type | complete body/light block assembly |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Device Presentation | basic sub-assemblies |
| [Us] Rated Supply Voltage | 230 to 240 V AC 50/60 Hz |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Terminals Description Iso N°1 | PL |
| Electrical Composition Code | P4 || M9 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Cad Overall Depth | 60 mm |
| Fixing Collar Material | zamak |
| Cad Overall Width | 30 mm |
| Cad Overall Height | 47 mm |
| Signalling Type | steady |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Short Name | ZB4 |
| Ip Degree Of Protection | IP20 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Product Certifications | BV || CSA || GL || DNV || UL Listed || LROS (Lloyds register of shipping) |
| Mounting Of Block | front mounting |
| Ambient Air Temperature For Operation | -40-55°C |
| Light Source | Incandescent |
| Bulb Base | BA 9s |
| Terminals Description Iso N°1 | PL |
| Compatible Panel Cutout Diameter | 22 mm |
| Overall Height | 1.85 in |
| Overall Depth | 2.36 in |
| Includes Bulb | Bulb Included |
| Overall Width | 1.18 in |
| Manufacturer Warranty Length | 18 mo |
| Compatible with Brand | Schneider |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Operator | Selector Switch |
| NEMA Enclosure Rating | No Enclosure |
| Compatible with Series | XB4 |
| Voltage Rating - Maximum | 240 V AC |
| Package Quantity | 1 |
