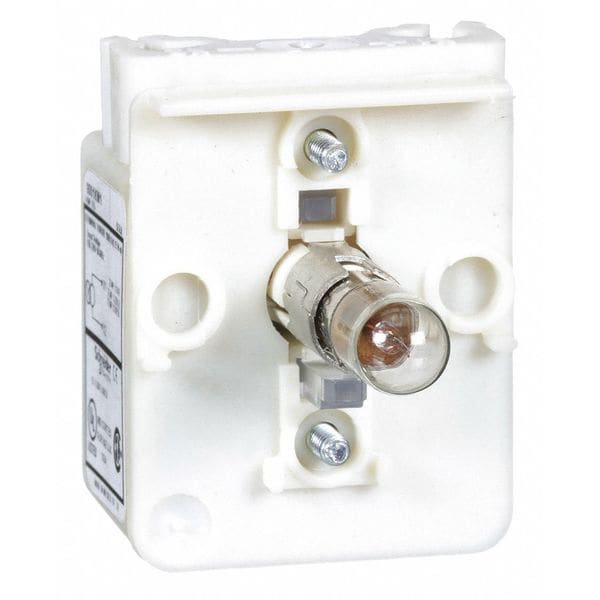

Módulo de lámpara, 30mm, 110-120V, Transparente, Incandescente
| Item | Lamp Module |
|---|---|
| Voltage | 120V AC |
| Color | Clear |
| Material of Construction | Plastic |
| Lamp Type | Incandescent |
| Terminal Connection | Screw Clamp |
| Replacement Lamp | Mfr. No. 25501-010-20 |
| Size | 30 mm |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 120V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| IP Rating | Not Rated |
| Lamp Voltage | 6V AC/DC |
| For Use With | 9001 Illuminated Operators and Pilot Lights |
| Body Material | Plastic |
| Hz | 50/60 Hz |
| IP Degree Of Protection | IP20 IEC 60529 |
| Product Or Component Type | Light block |
| Rated Supply Voltage | 110 to 120 V |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Bulb Base | BA 9s |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Product Certifications | UL 508; NEMA |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Vibration Resistance | 7 gn 2 to 500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Supply Frequency | 50 to 60 Hz |
| Protective Treatment | TC |
| Light Block Supply | Direct via integral transformer 6 V |
| Light Source | Incandescent bulb |
| Compatible Panel Cutout Diameter | 30 mm |
| Includes Bulb | Yes |
| Compatible with Brand | Schneider |
| Compatible with Series | 9001K, 9001SK |
| Voltage Rating - Maximum | 120 V AC/DC |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Manufacturer Warranty Length | 18 mo |
| Compatible Operator | Selector Switch |
| Package Quantity | 1 |
