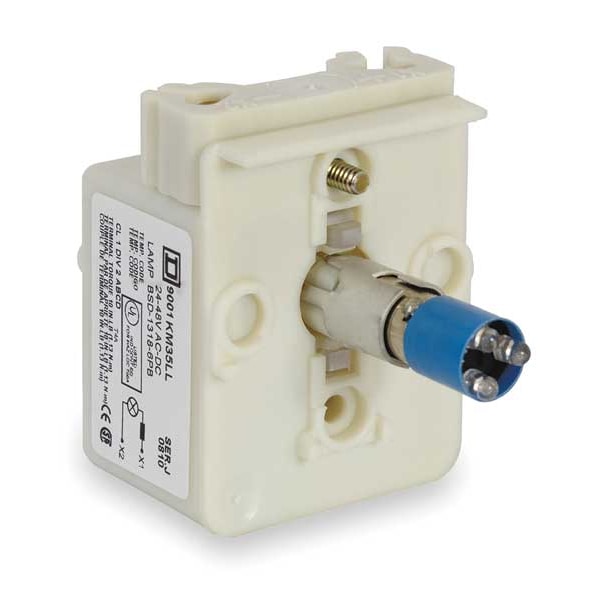

Módulo de lámpara, 30mm, 120VCA/VCC, azul, LED
| Item | Lamp Module |
|---|---|
| Color | Blue |
| Material of Construction | Plastic |
| Lamp Type | LED |
| Terminal Connection | Screw Clamp |
| Size | 30 mm |
| Replacement Lamp | Mfr. No. 65088-052-13 |
| Lamp Module Voltage | 120V AC/DC |
| Lamp Voltage | 120V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| IP Rating | IP20 |
| Body Material | Plastic |
| Standards | UL 508; CSA C22.2 No 14; EN/IEC 60947-5-4; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C 4520; JIS C 852 |
| IP Degree Of Protection | IP20 IEC 60529 |
| Bulb Base | BA 9s |
| Light Block Supply | Direct via integral resistance 1.4 VA |
| Product Certifications | UL Listed; CSA; NEMA |
| Rated Supply Voltage | 120 V AC 50 to 60 Hz; 120 V DC |
| Ambient Air Temperature For Operation | -13 to 158°F ; -13 to 158°F |
| Ambient Air Temperature For Storage | -40 to 158°F ; -40 to 158°F |
| Light Source | LED |
| Product Or Component Type | Light module; Light block |
| Vibration Resistance | 7 gn 2 to 500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 1, 2 |
| Includes Bulb | Yes |
| Compatible Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
