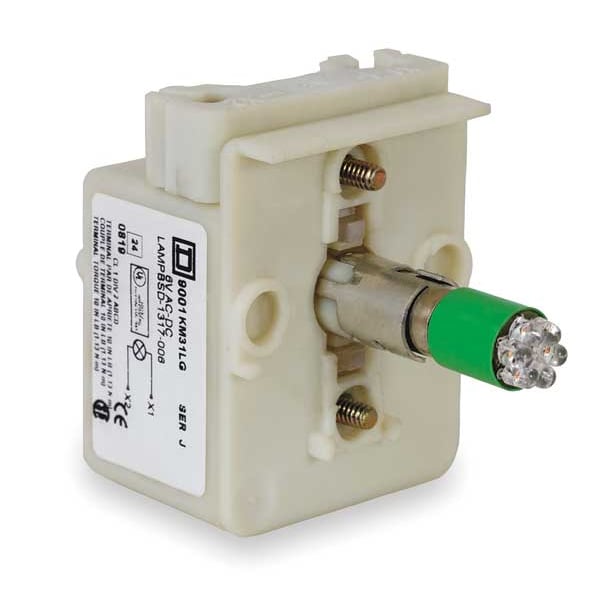

Módulo de lámpara, 30mm, 24-28VCA/VCD, verde, LED.
| Item | Lamp Module |
|---|---|
| Material of Construction | Plastic |
| Color | Green |
| Lamp Type | LED |
| Terminal Connection | Screw Terminal |
| Size | 30 mm |
| Replacement Lamp | Mfr. No. 65088-052-12 |
| Lamp Module Voltage | 24V AC/DC |
| Lamp Module Type | Full Voltage |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| IP Rating | Not Rated |
| Lamp Voltage | 24V AC/DC |
| Body Material | Plastic |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| Voltage Rating - Maximum | 28 V AC/DC |
| Compatible with Series | 9001K, 9001SK |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible with Brand | Schneider |
| Manufacturer Warranty Length | 18 mo |
| Compatible Panel Cutout Diameter | 30 mm |
| Includes Bulb | Yes |
| Compatible Operator | Selector Switch |
| NEMA Enclosure Rating | No Enclosure |
| Package Quantity | 1 |
