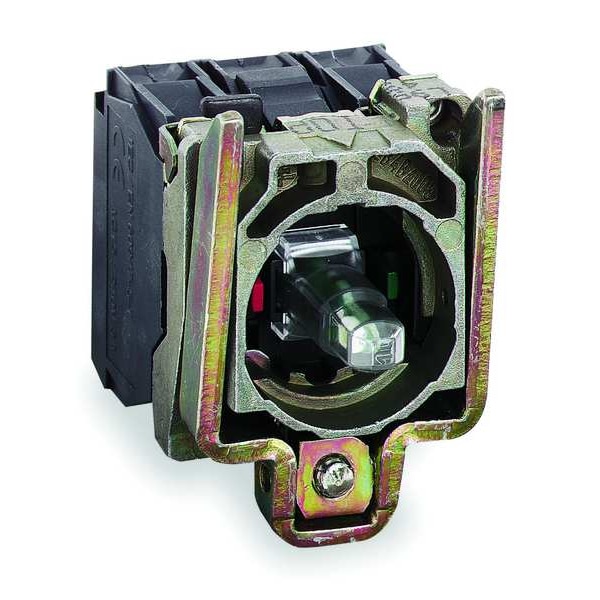

Módulo de lámpara y bloque de contacto, 22mm, 1NA
| Item | Lamp Module and Contact Block |
|---|---|
| Contact Rating | 10 A @ 600V AC/DC |
| For Use With | Chrome, ZB4 Series |
| Size | 22 mm |
| Lamp Type | Led |
| Contact Form | 1 NO |
| Color | Blue |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 24V AC/DC |
| NEMA Contact Rating Designation | A600, Q600 |
| Lamp Voltage | 24V AC/DC |
| IP Rating | IP66 |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Standards | CE, CSA, UL Listed |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Operating Travel | 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel) |
| Operating Force | 2.3 N NO changing electrical state |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Shape Of Screw Head | Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm |
| Contact Operation | Slow-break |
| Fixing Collar Material | Zamak |
| Light Block Supply | Direct |
| Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Electrical Reliability | Less than 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1; 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | Class I IEC 60536 |
| Product Or Component Type | Complete body/contact assembly and light block |
| Positive Opening | Without |
| Electromagnetic Emission | Class B IEC 55011 |
| Supply Voltage Limits | 19.2 to 30 V DC; 21.6 to 26.4 V AC |
| Light Source | LED |
| Contact Type and Composition | 1 NO |
| Ambient Air Temperature For Operation | -40 to 158°F |
| Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-6; 8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Bulb Base | Integral LED |
| Contacts Material | Silver alloy |
| Head Type | Standard |
| Mechanical Durability | 5,000,000 cycle |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Service Life | 100000 h at rated voltage and 25°C |
| Signalling Type | Steady |
| Terminals Description ISO n°1 | NO |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Resistance To Electromagnetic Fields | 9.14 V/m |
| Current Consumption | 18 mA |
| Contacts Usage | Standard |
| Vibration Resistance | 5 gn 2 to 500 Hz)IEC 60068-2-6 |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Product Certifications | CSA; UL Listed; DNV; BV; GL; LROS (Lloyds register of shipping) |
| Device Presentation | Basic sub-assemblies |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Connections - Terminals | Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end EN 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mm² without cable end EN 60947-1 |
| Operating Torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
| Tightening Torque | 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) EN 60947-1 |
| Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Protective Treatment | TH |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 1, 2 |
| Compatible with Series | XB4, ZB4 |
| Includes Bulb | Yes |
| Lamp Color | Blue |
| Compatible Product Type | Chrome Operators |
| Compatible Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
