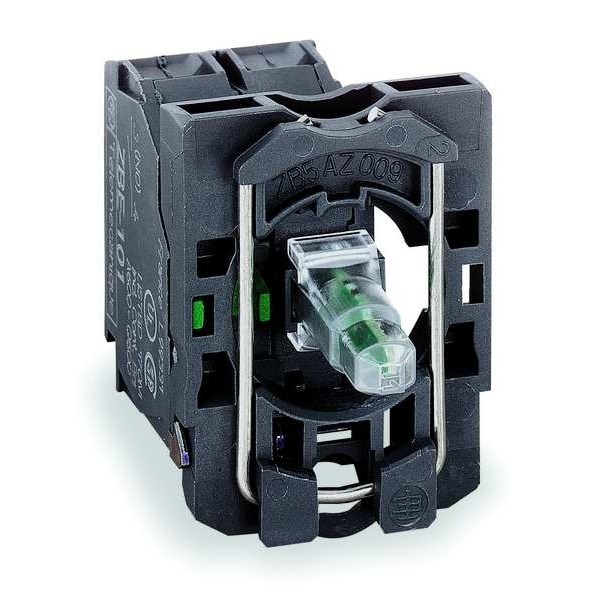

Módulo de lámpara y bloque de contacto, 22mm, 1NA
| Item | Lamp Module and Contact Block |
|---|---|
| Contact Rating | 10 A @ 600V AC/DC |
| Size | 22 mm |
| For Use With | Plastic, ZB5 Series |
| Lamp Type | Led |
| Contact Form | 1 NO |
| Lamp Module Type | Full Voltage |
| Color | Yellow |
| Lamp Module Voltage | 24V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| NEMA Contact Rating Designation | A600, Q600 |
| IP Rating | IP66 |
| Standards | CE, CSA, UL Listed |
| Lamp Voltage | 24V AC/DC |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Compatible with Series | XB5, ZB5 |
| Compatible Product Type | Plastic Operators |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 1, 2 |
| Includes Bulb | Yes |
| Compatible Panel Cutout Diameter | 22 mm |
| Lamp Color | Yellow |
| Package Quantity | 1 |
