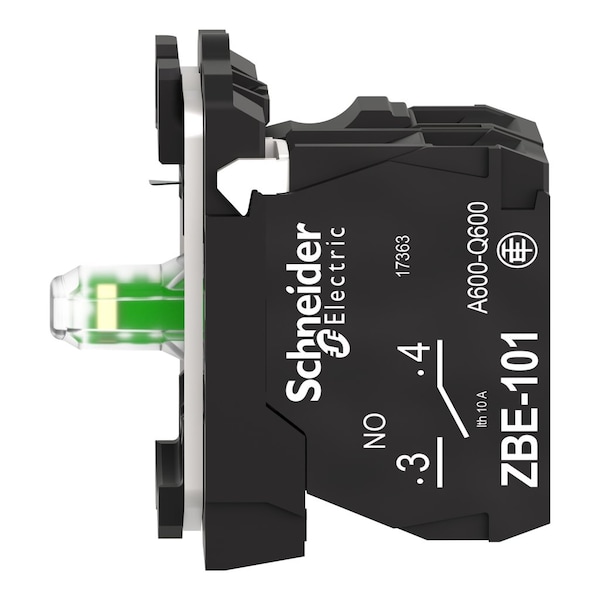

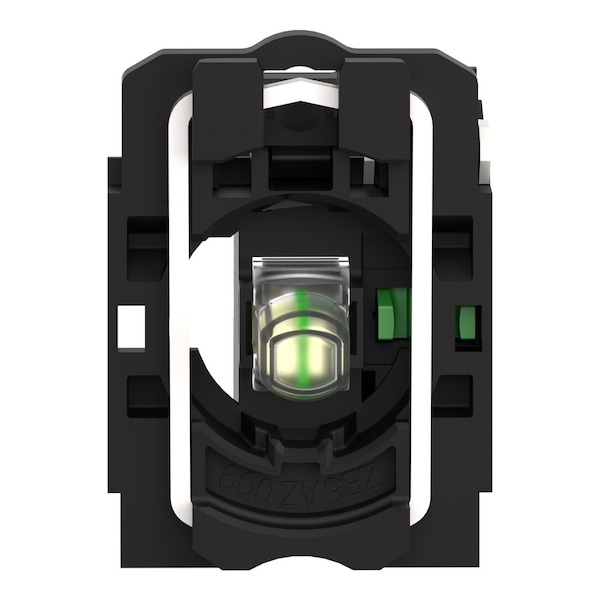

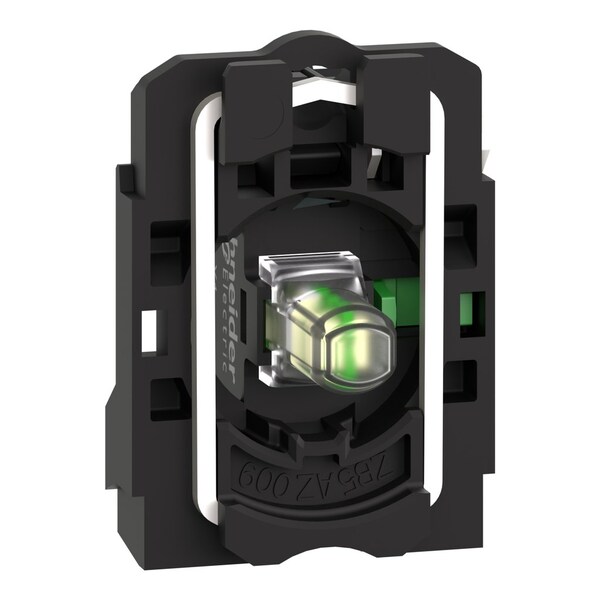

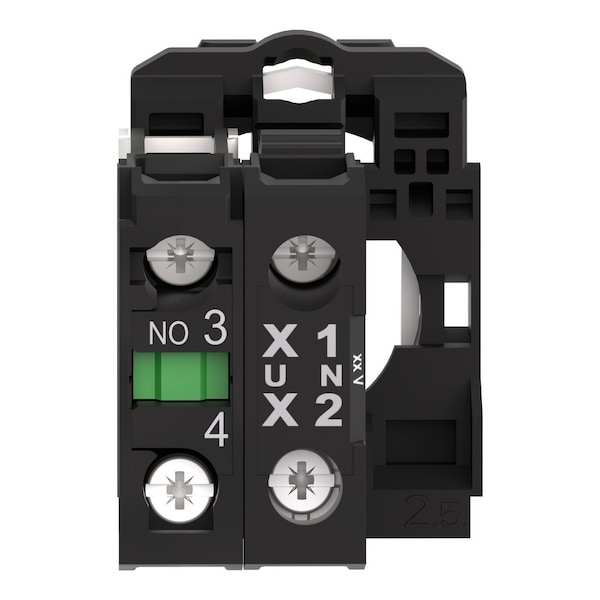

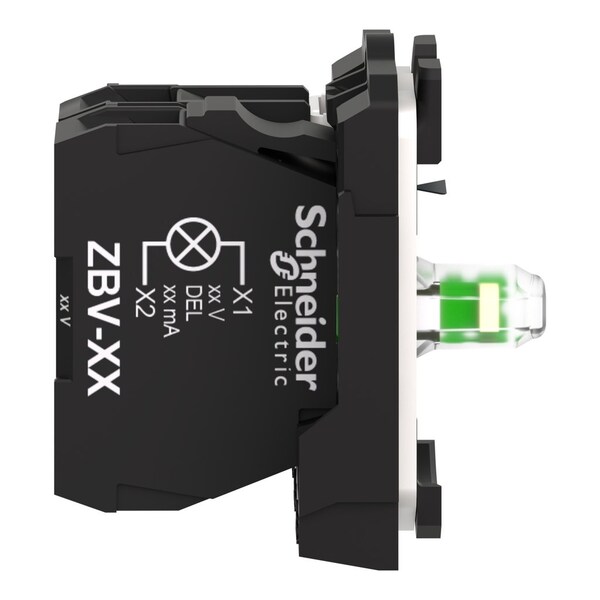

Bloque de contacto y módulo de lámpara, 1NA (normalmente abierto), blanco, 22mm.
| Item | Lamp Module and Contact Block |
|---|---|
| Color | White |
| Lamp Type | LED |
| Contact Form | 1 NO |
| Lamp Module Voltage | 110 to 120V AC |
| Lamp Module Type | Full Voltage |
| Terminal Type | Screw |
| NEMA Contact Rating Designation | A600, Q600 |
| Lamp Voltage | 110 to 120V AC |
| Contact Rating | 0.1 A @ 600V DC, 0.27 A @ 250V DC, 0.55 A @ 125V DC, 1.2 A @ 600V AC, 3 A @ 240V AC, 6 A @ 120V AC |
| IP Rating | IP20 |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, RoHS, UL 508 |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Terminal Connection Type | Screw Clamp |
| Compatible with Series | XB5 |
| Includes Bulb | Yes |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Compatible Product Type | Chrome Operators |
| Lamp Color | White |
| Compatible Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
