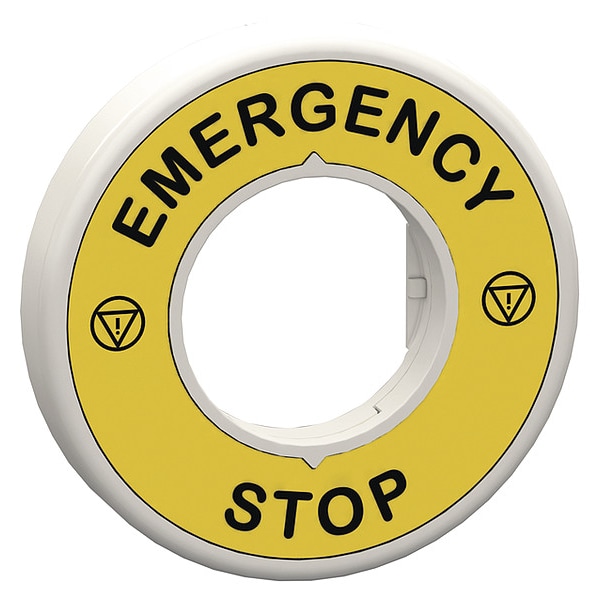

Anillo del anillo de leyenda, Emergencia de Arresto, Negro/Amarillo, Redondo
| Item | Legend Ring |
|---|---|
| Shape | Round |
| Legend | Arresto Emergenza |
| Legend/Background Color | Black, Yellow |
| Material | Plastic |
| Height | 60 mm |
| Width | 9.3 mm |
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1 |
| Diameter | 60 mm |
| Product Type | Legend Ring |
| Manufacturer Warranty Length | 18 mo |
| Legend Color | Black |
| Overall Diameter | 2-3/8 in |
| Overall Height | Not Applicable |
| Compatible with Series | XB4, XB5 |
| Background Color | Yellow |
| Keyway Type | Tab |
| Overall Width | Not Applicable |
| Language | Spanish |
| Compatible Panel Cutout Diameter | 22 mm |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Bulb Base | integral LED |
| Resistance To Electrostatic Discharge | 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Shape Of Signaling Unit Head | round |
| Ambient Air Temperature For Operation | -40-70°C |
| Electrical Insulation Class | class II IEC 61140 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Product Or Component Type | illuminated marked legend ring |
| Protective Treatment | TH |
| Cap/Operator Or Lens Colour | 2 colours choice |
| Operator Additional Information | with illuminated ring |
| Supply Voltage Limits | 19.2-30 V DC || 21.6-26.4 V AC |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E |
| Product Certifications | UL Listed || CSA |
| [Ui] Rated Insulation Voltage | 24 V 3)EN/IEC 60947-1 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Label Dimensions | Ø 60 mm |
| Ik Degree Of Protection | IK05 EN 50102 |
| Device Presentation | intermediate ring |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Electromagnetic Emission | class B IEC 55011 |
| Light Source Colour | red, white |
| Compatibility Code | XB4 || XB5 |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Marking | black ARRESTO EMERGENZA yellow |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Signalling Type | steady |
| Current Consumption | 18 mA |
| Ambient Air Temperature For Storage | -40-70°C |
| Light Source | protected LED |
| Accessory / Separate Part Destination | emergency stop mushroom head push-button |
| Package Quantity | 1 |
