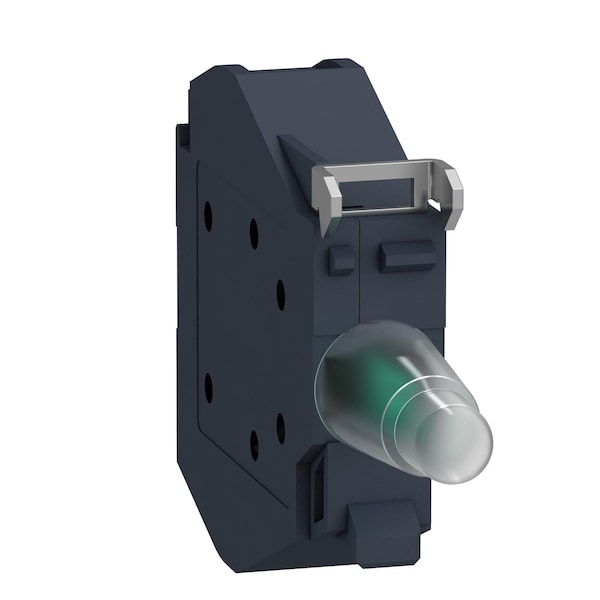

Bloque de luz, Harmony XB4 - ATEX D, blanco, LED integrado, 24...254V CA/CD
| Size | 22mm |
|---|---|
| Lamp Voltage | 24 to 254 V AC/DC |
| Lamp Type | LED |
| Color | White |
| Item | Light block |
| Terminal Connection | Screw Clamp |
| Standards | EN/IEC 60079-0, EN/IEC 60079-7, EN/IEC 60079-18, EN/IEC 60079-31, CSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-0, UL 60079-31, UL 60079-18 |
| IP Rating | 65 |
| Cad Overall Width | 38 mm |
| Product Certifications | cULus |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Current Consumption | 2 to 10 mA |
| Cad Overall Depth | 58.8 mm |
| Product Or Component Type | block |
| Marking | Ex eb mb IIC Gb |
| Signalling Type | steady |
| Protective Treatment | TH |
| Connections - Terminals | screw clamp terminals, 2 x 1.5 mm² without cable end EN 60947-1 || screw clamp terminals, 1 x 2.5 mm² with cable end EN 60947-1 |
| [Us] Rated Supply Voltage | 24 to 254 V AC/DC |
| Light Block Supply | direct |
| Cad Overall Height | 10 mm |
| Environmental Characteristic | hazardous location class I division 2 |
| Light Source Colour | white |
| Ambient Air Temperature For Storage | -50-70°C |
| Device Short Name | ZBV |
| Bulb Base | integral LED |
| Mounting Of Block | front mounting |
| Light Source | LED |
| Ambient Air Temperature For Operation | -50-95°C |
| Service Life | 100,000 h (at ambiant temperature) |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
