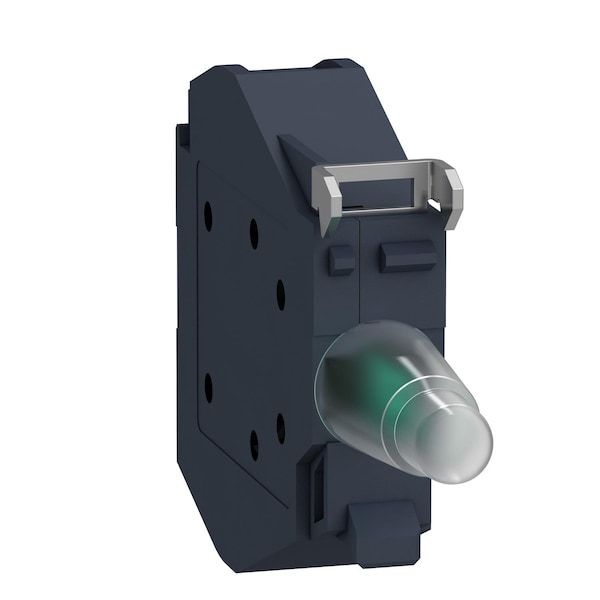

Bloque de luz, Harmony XB4, Atmosfera explosiva, LED verde, 24...254V
| Size | 22mm |
|---|---|
| Lamp Voltage | 24 to 254 V AC/DC |
| Lamp Type | LED |
| Color | Green |
| Item | Light block |
| Terminal Connection | Screw Clamp |
| IP Rating | 65 |
| Standards | EN/IEC 60079-31, ANSI/ISA 12.12.01, UL 60079-31, EN/IEC 60079-18, EN/IEC 60079-0, EN/IEC 60079-7, UL 60079-18, UL 60079-0, CSA C22.2 No 213 |
| Cad Overall Height | 10 mm |
| Device Short Name | ZBV |
| Signalling Type | steady |
| Product Certifications | cULus |
| Protective Treatment | TH |
| Ambient Air Temperature For Operation | -50-95°C |
| Light Source Colour | green |
| Mounting Of Block | front mounting |
| Light Source | LED |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Product Or Component Type | block |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Light Block Supply | direct |
| Marking | Ex eb mb IIC Gb |
| Environmental Characteristic | hazardous location class I division 2 |
| Bulb Base | integral LED |
| Current Consumption | 2 to 10 mA |
| Connections - Terminals | screw clamp terminals, 2 x 1.5 mm² without cable end EN 60947-1 || screw clamp terminals, 1 x 2.5 mm² with cable end EN 60947-1 |
| Ambient Air Temperature For Storage | -50-70°C |
| Cad Overall Width | 38 mm |
| [Us] Rated Supply Voltage | 24 to 254 V AC/DC |
| Cad Overall Depth | 58.8 mm |
| Service Life | 100,000 h (at ambiant temperature) |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
