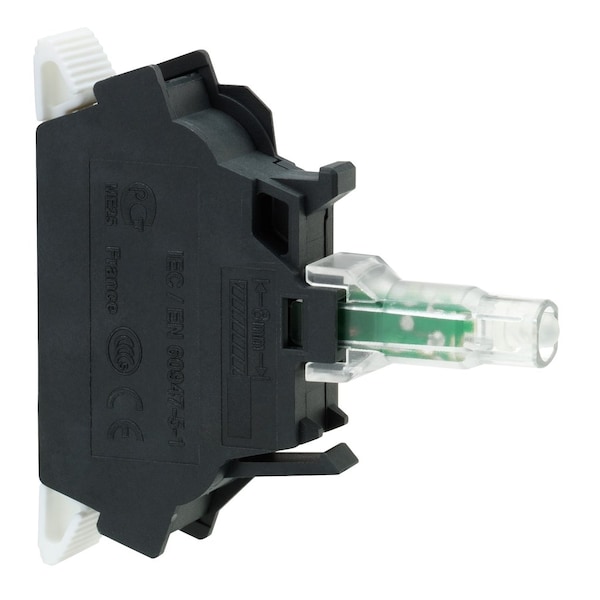

Bloque de luz, Harmony XB4, Harmony XB5, para cabezal de 22mm, LED universal, 12V AC DC, terminales compactos de inserción rápida.
| Item | White light block for head 022 integral |
|---|---|
| Standards | EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Device Short Name | ZBV |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Light Source | LED |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Light Block Supply | direct |
| Product Or Component Type | block |
| Connections - Terminals | spring clamp terminals |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Electrical Composition Code | M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1 |
| Light Source Colour | white |
| Electromagnetic Emission | class B IEC 55011 |
| Ambient Air Temperature For Operation | -40-70°C |
| Bulb Base | integral LED |
| [Us] Rated Supply Voltage | 12 V AC/DC 50/60 Hz, 12 V |
| Signalling Type | steady |
| Mounting Of Block | front mounting |
| Supply Voltage Limits | 10-15 V DC 10.2-13.8 V AC |
| Current Consumption | 18 mA |
| Service Life | 100000 h at rated voltage and 25°C |
| Shape of Screw Head | flat Ø 4 mm |
| Device Presentation | basic element |
| Range of Product | Harmony XB5, Harmony XB4 |
| Package Quantity | 1 |
