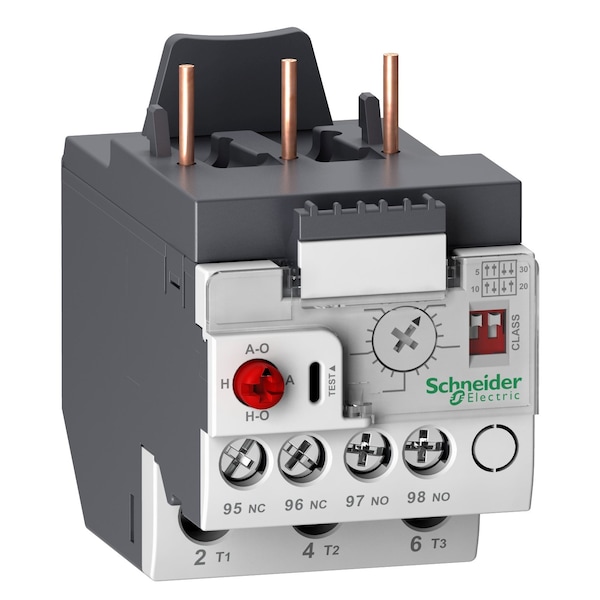

Lr9D Electrónico OLR, 6.4-32A, 600VCA
| Item | Overload Relay |
|---|---|
| Use With - Contactors and Starters | Mfr. Series LC1D09 to LC1D32 Contactors |
| NEMA Size | Not Applicable |
| Trip Class - Overload | 10, 20, 30, 5 |
| Width | 45 mm |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Series LRD |
| Sensing Method | Thermal |
| Height | 72.5 mm |
| Reset Type - Relay | Manual, Auto |
| Depth | 79.9 mm |
| Standards | CCC, CSA, CSA C22.2, GB/T 14048.4, IEC 60947-4-1, Product CULus, TÜV, UL 60947-4-1 |
| Trip Class | 5/10/20/30 |
| Separate Mounting | Yes |
| Body Depth - Relay | 3.15 in |
| Features | China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free |
| Body Height - Relay | 2.85 in |
| Body Width - Relay | 1.77 in |
| [Ith] Conventional Free Air Thermal Current | 5 A (signalling circuit) |
| Ambient Air Temperature For Storage | -55-80°C |
| Product Compatibility | LC1D09 || LC1D25 || LC1D32 || LC1D38 || LC1D12 || LC1D18 |
| Tightening Torque | control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals |
| Connections - Terminals | control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end |
| Product Certifications | IECEE CB Scheme || UL || CSA || CCC |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Mounting Support | under contactor || plate, with specific accessories || rail, with specific accessories |
| Associated Fuse Rating | 5 A gG signalling circuit || 5 A BS signalling circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Phase Failure Sensitivity | phase difference > 40% 3-3 s IEC 60947-4-1 |
| Thermal Protection Adjustment Range | 6.4 to 32 A |
| Relay Application | motor protection |
| Power Consumption In W | 300 mW |
| [Ue] Rated Operational Voltage | 690 V power circuit || 660 V signalling circuit |
| Control Type | Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || Gray dial full-load current adjustment |
| Time Range | 1.5 to 4 min - automatic reset time |
| Ambient Air Temperature For Operation | -25-70°C IEC 60255-8 |
| Mechanical Robustness | vibrations 10 to 150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7 |
| Electromagnetic Compatibility | surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4 |
| Product Or Component Type | electronic thermal overload relay |
| [Ui] Rated Insulation Voltage | power circuit 1000 V || signalling circuit 690 V |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Dielectric Strength | 6 kV 50 Hz IEC 60255-5 |
| Thermal Overload Class | class 5-30 |
| Tripping Threshold | 1.25 In IEC 60947-4-1 |
| Range | TeSys |
| Device Short Name | LR9D |
| Product Name | TeSys LRD |
| Reset Type | Manual, Auto |
| Mounting Style | Direct To Contactor |
| Body Depth | 3.15 in |
| Compatible with Series | TeSys Deca, TeSys LRD |
| Overload Protection Type | Thermal |
| Body Height | 2.85 in |
| Relay Style | IEC |
| Auxiliary Contact Form | 1NO/1NC |
| Minimum Overload Relay Current Setting | 6.4 A |
| Maximum Voltage Rating | 690 V AC |
| Body Width | 1.77 in |
| Maximum Overload Relay Current Setting | 32 A |
| Package Quantity | 1 |
