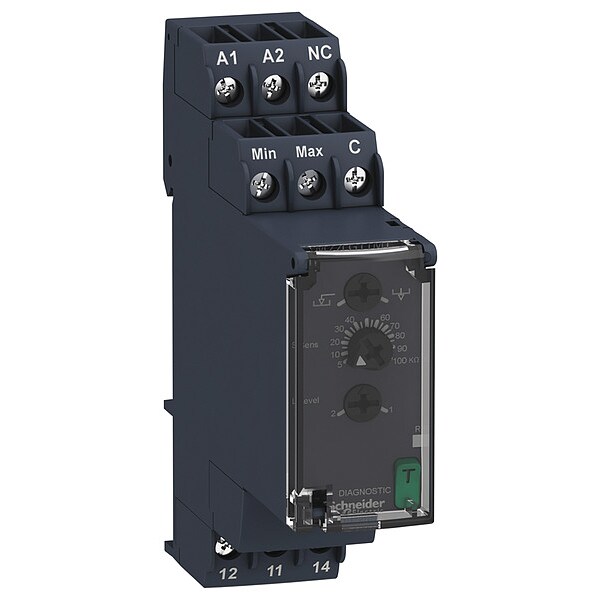

LvlControlRelay, DualProbe, 8A, PumpUp/Down
| Item | Level Control Relay |
|---|---|
| Type | Modular measurement and control relays |
| Enclosure Height (In.) | 3.65 |
| Enclosure Width (In.) | 0.89 |
| Number of Probes | Dual Probe |
| Enclosure Depth (In.) | 3.15 |
| Input Voltage | 380 to 415V AC |
| Wiring Conductors | Screw terminal |
| Control Type | One or Two Liquid Levels With Fill or Empty Function |
| Application | Spring, Town, Industrial, And Sea Water, Metallic Salt, Acid, Or Base Solutions, Liquid Fertilizers, Non-Concentrated Alcohol ( Less Than 40%), Liquids In The Food Processing Industry: Beer, Coffee |
| Special Features | A control status indicator LED, A dial pointer LED indicator for relay power ON status, A relay output status LED , A sealable cover to help protect the settings, The relays are designed for clip-on mounting on a 5 rail |
| Features | Sealable Cover |
| Standards | CCC, CE, China RoHS, CSA, EAC, EN/IEC 60255-1, GL, RCM, UL |
| Special Information | The relays are designed for clip-on mounting |
| Contact Form | SPDT |
| Number of Switches | 2 |
| Switch Type | SPDT |
| Operating Range | - 15 % + 10 % Un |
| Enclosure Color | Power ON LED green, Relay ON LED yellow |
| Agency Compliance | CCC, CE, China RoHS, CSA, EAC, EN/IEC 60255-1, GL, RCM, UL |
| Flat Pin Width | Not Applicable |
| Status Indicator | LED Indicator |
| Base Shape | Not Applicable |
| Electrical Connection | Screw Terminals |
| Minimum Resistance Sensitivity | 5,000 ohms |
| Relay Function | Pump Down |
| Body Width | 0.89 in |
| Number of Pins | 2 |
| Maximum Resistance Sensitivity | 100,000 ohms |
| Body Depth | 3.15 in |
| Coil Voltage | 24 to 240V AC/DC |
| Body Height | 3.65 in |
| Mounting Style | DIN Rail |
| Current Rating | 8 A |
| Country of Origin (subject to change) | Indonesia |
| Package Quantity | 1 |
