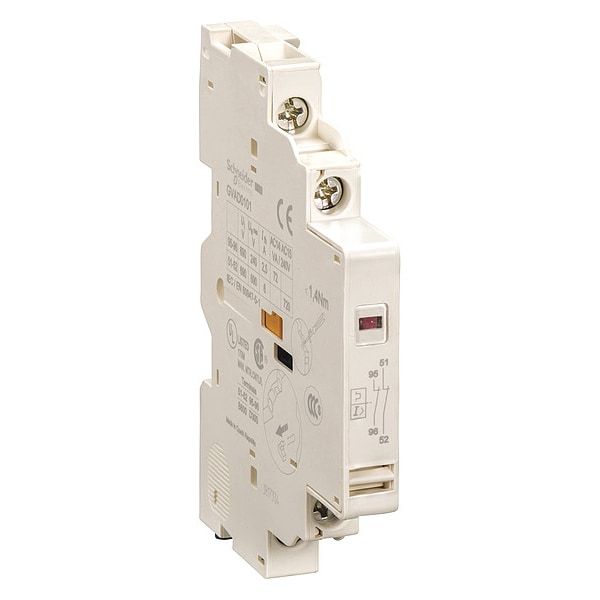

Contacto de señalización de falla de arranque manual 575Va
| Item | Manstarter Fault Signaling Contact 575Va |
|---|---|
| Height | 89 mm |
| Standards | UKCA |
| Width | 9.3 mm |
| Depth | 66 mm |
| Features | Mercury Free |
| Weight | 0.055 kg |
| Operating Voltage | 48 to 690V AC; 24 to 240V DC |
| Minimum Switching Current | 5 mA |
| Mechanical Durability | 100000 cycles |
| Mounting Location | Left side |
| Minimum Switching Voltage | 17 V |
| Tightening Torque | 12.39 lbf.in (1.4 N.m) screw clamp terminals |
| Rated Operational Power in VA | 300 VA 48 V AC-15 100000 cycles; 414 VA 690 V AC-15 100000 cycles; 500 VA 110 to 127 V AC-15 100000 cycles; 500 VA 500 V AC-15 100000 cycles; 650 VA 440 V AC-15 100000 cycles; 720 VA 230 to 240 V AC-15 100000 cycles; 850 VA 380 to 415 V AC-15 100000 cycles; 36 VA 24 V AC-14 1000 cycles; 48 VA 48 V AC-14 1000 cycles; 72 VA 110 to 127 V AC-14 1000 cycles |
| Conventional Free Air Thermal Current | 6 A, 2.5 A |
| Protection Type | GB2CB to circuit breaker; GG fuse 10 A |
| Rated Operational Voltage | 48 to 690 V AC; 24 to 240 V DC |
| Product Or Component Type | Auxiliary contact block |
| Rated Insulation Voltage | 690 V IEC 60947-1; 300 V UL 508; 300 V CSA C22.2 No 14 |
| Environmental Characteristic | Normal environment |
| Auxiliary Contacts Operation | Fault signal 1 NO |
| Product Compatibility | GV2L; GV2P; GV2RT; GV3L; GV2LE; GV3P; GV2ME |
| Rated Operational Power in W | 120 W 240 V DC-13 100000 cycles; 140 W 110 V DC-13 100000 cycles; 140 W 24 V DC-13 100000 cycles; 180 W 60 V DC-13 100000 cycles; 240 W 48 V DC-13 100000 cycles; 15 W 48 V DC-13 1000 cycles; 24 W 24 V DC-13 1000 cycles; 9 W 60 V DC-13 1000 cycles |
| Color | Dark Gray |
| Pole Contact Composition | 2 NO |
| Package Quantity | 1 |
