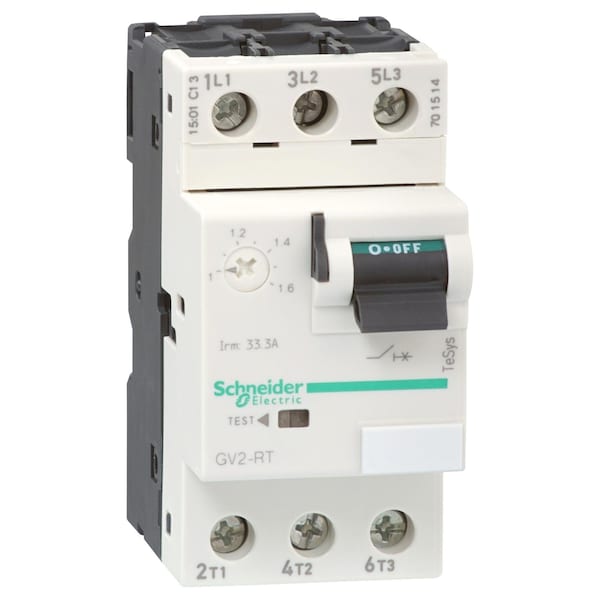

Arrancador manual 600Vca de 4-6.3 amperes IEC
| Depth | 78.5 mm |
|---|---|
| Height | 89 mm |
| Item | Manual Starter 600Vac 4-6.3Amp IEC |
| Width | 45 mm |
| Standards | EN/IEC 60947-2 || EN/IEC 60947-4-1 |
| Ik Degree Of Protection | IK04 |
| Rated Duty | continuous IEC 60947-4-1 |
| Tightening Torque | 1.7 N.m screw clamp terminal |
| Trip Unit Technology | thermal-magnetic |
| Product Certifications | CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || UKCA |
| Control Type | toggle |
| Motor Power Kw | 1.1-1.1 kW 220/230 V AC 50/60 Hz motor protection high peak current || 2.2-2.2 kW 400/415 V AC 50/60 Hz motor protection high peak current || 2.2-2.2 kW 440 V AC 50/60 Hz motor protection high peak current || 3-3 kW 440 V AC 50/60 Hz motor protection high peak current || 3-3 kW 500 V AC 50/60 Hz motor protection high peak current || 4-4 kW 690 V AC 50/60 Hz motor protection high peak current || 1.6-1.6 kW 230/240 V AC 50/60 Hz transformer protection || 2-2 kW 230/240 V AC 50/60 Hz transformer protection || 2.5-2.5 kW 400/415 V AC 50/60 Hz transformer protection || 2.5-2.5 kW 440 V AC 50/60 Hz transformer protection || 4-4 kW 440 V AC 50/60 Hz transformer protection || 4-4 kW 500 V AC 50/60 Hz transformer protection || 4-4 kW 690 V AC 50/60 Hz transformer protection || 5-5 kW 690 V AC 50/60 Hz transformer protection || 6.3-6.3 kW 690 V AC 50/60 Hz transformer protection |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Fire Resistance | 960°C IEC 60695-2-11 |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ith] Conventional Free Air Thermal Current | 6.3 A IEC 60947-4-1 |
| Network Type | AC |
| Device Short Name | GV2RT |
| Device Application | motor protection |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate) |
| Mechanical Durability | 100,000 cycle |
| Utilisation Category | category A IEC 60947-2 || AC-3 IEC 60947-4-1 |
| Power Dissipation Per Pole | 2.5 W |
| Ambient Air Temperature For Storage | -40-80°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Thermal Protection Adjustment Range | 4-6.3 A IEC 60947-4-1 |
| Poles Description | 3P |
| Line Rated Current | 6.3 A |
| Product Or Component Type | motor circuit breaker |
| Mechanical Robustness | shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz |
| Range | TeSys Deca |
| Breaking Capacity | 100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Operating Altitude | 6,561.68 ft |
| Ambient Air Temperature For Operation | -20-60°C |
| Electrical Durability | 100000 cycles AC-3 415 V In |
| Product Name | TeSys GV2 || TeSys Deca |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Suitability For Isolation | yes IEC 60947-1§ 7-1-6 |
| Climatic Withstand | IACS E10 |
| Magnetic Tripping Current | 138-138 A |
| Package Quantity | 1 |
