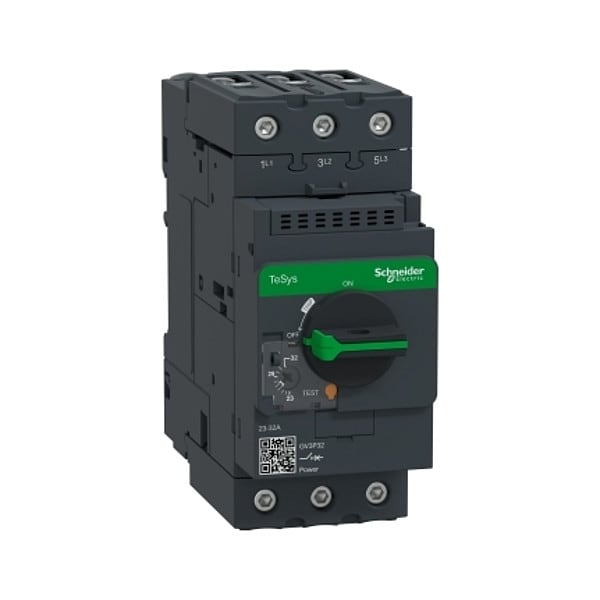

Arrancador manual 600 Vac 40 Amp Iec.
| Operator | Switch |
|---|---|
| NEMA Size | Not Applicable |
| Depth | 136 mm |
| Height | 132 mm |
| Item | Manual Starter |
| Width | 55 mm |
| Number of Poles | 3 |
| Phase Loss Sensitivity | Yes |
| Standards | CSA C22.2 No 60947-4-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1 |
| IP Rating | IP20 |
| Current AC | 32 A |
| Phase | Three |
| Maximum Operating Temperature | 140 deg F |
| Overload Protection Type | Thermal |
| Starter Style | IEC |
| Resistance Properties | Fire Resistant |
| Mounting Style | DIN Rail |
| Overall Depth | 5.35 in |
| Maximum Overload Relay Current Setting | 32 A |
| Overall Width | 2.17 in |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Voltage Rating | 690 V AC |
| Overall Height | 5.2 in |
| Series | TeSys Deca |
| Minimum Operating Temperature | -4 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Minimum Overload Relay Current Setting | 23 A |
| Electrical Operating Durability | 50,000 |
| Mechanical Operating Durability | 50,000 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Control Type | rotary handle |
| Phase Failure Sensitivity | yes IEC 60947-4-1 |
| Motor Power Kw | 15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz |
| Color | Dark Grey |
| [Ith] Conventional Free Air Thermal Current | 32 A IEC 60947-4-1 |
| Fixing Mode | 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws) |
| Network Type | AC |
| Product Certifications | CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA |
| Utilisation Category | AC-3 IEC 60947-4-1 |
| Tightening Torque | 5 N.m screw clamp terminal |
| Line Rated Current | 32 A |
| Breaking Capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Rated Duty | continuous IEC 60947-4-1 |
| Power Dissipation Per Pole | 8 W |
| Mechanical Durability | 50,000 cycle |
| Rated Service Short-Circuit Breaking Capacity | 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2 |
| Magnetic Tripping Current | 448-448 A |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Operating Altitude | 9,842.52 ft |
| Ambient Air Temperature For Storage | -40-80°C |
| Product Name | TeSys GV3 || TeSys Deca |
| Poles Description | 3P |
| Suitability For Isolation | yes IEC 60947-1 |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2 |
| Ambient Air Temperature For Operation | -20-60°C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Thermal Protection Adjustment Range | 23-32 A IEC 60947-4-1 |
| Electrical Durability | 50000 cycles AC-3 415 V In |
| Trip Unit Technology | thermal-magnetic |
| Range | TeSys Deca |
| Device Short Name | GV3P |
| Device Application | motor protection |
| Ik Degree Of Protection | IK09 enclosure |
| Fire Resistance | 960°C IEC 60695-2-11 |
| Mechanical Robustness | shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5 to 300 Hz |
| Product Or Component Type | motor circuit breaker |
| Climatic Withstand | IACS E10 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| Network Frequency | 50/60 Hz IEC 60947-4-1 |
| Package Quantity | 1 |
