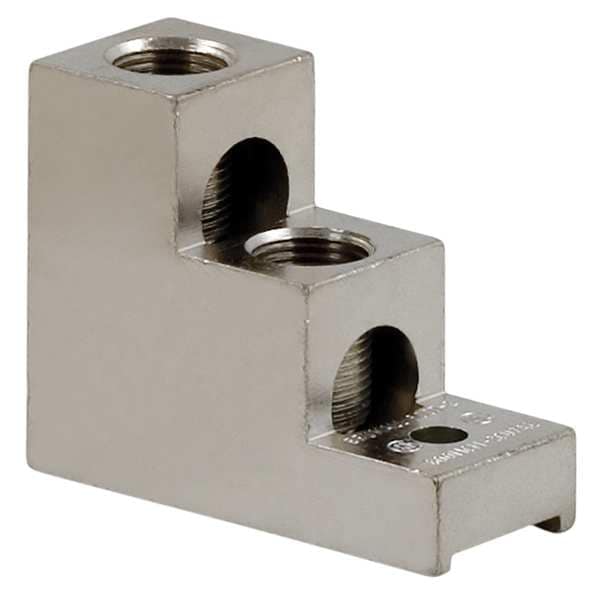

Conector mecánico, de ojal, de 600 kcmil a 2 AWG.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 2 AWG Stranded |
| Max. Conductor Size | 600 kcmil Stranded |
| Material | Tin-Plated Aluminum |
| Length | 3.7 in |
| Width | 3.03 in |
| Head Style | Hex |
| Standards | CE Certified, CSA Certified, UL Listed |
| Screw Material | Aluminum |
| Body Material | Aluminum |
| Length (Straight Wireway) | 3.7 in |
| Overall Length | 3.7 in |
| RoHS Compliant | Yes |
| Compatible with Product Type | Contactors |
| Contact Finish | Tin |
| Screw Finish | Tin Plated |
| Overall Width | 3.03 in |
| Number of Conductors | 2 |
| Product Or Component Type | lug kit |
| Line Rated Current | 630-630 A |
| Package Quantity | 1 |
