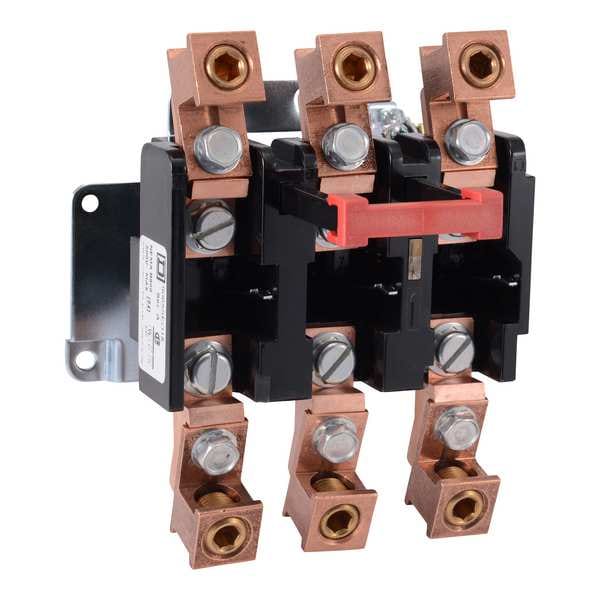

Relé de sobrecarga de aleación fundida 600V 133A.
| Item | Melting Alloy Overload Relay |
|---|---|
| Item - Relay | NEMA Style Overload Relay |
| NEMA Size | 4 |
| Width | 134.9 mm |
| Number of Poles | 3 |
| Thermal Units Required | No |
| Height | 177 mm |
| Reset Type - Relay | No Reset |
| Depth | 146.1 mm |
| Separate Mounting | Yes |
| Standards | RoHS |
| Body Depth - Relay | 5.74 in |
| Body Width - Relay | 5.31 in |
| Voltage | 600 V AC |
| Body Height - Relay | 6.97 in |
| Overall Height - Relay | 6.97 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Number Of Thermal Units Required | 3 |
| Mounting Support | panel |
| Thermal Overload Type | melting alloy |
| Number of Required Thermals | 3 |
| Body Height | 6.97 in |
| Phase | Three |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Includes Thermal Units | No |
| Overall Height | 6.97 in |
| Maximum Overload Relay Current Setting | 133 A |
| Relay Style | NEMA |
| Maximum Voltage Rating | 600 V AC |
| Auxiliary Contact Form | 1 NC |
| Overload Protection Type | Melting Alloy |
| Mounting Style | Separately Mounted |
| Body Width | 5.31 in |
| Body Depth | 5-3/4 in |
| Reset Type | No Reset |
| Package Quantity | 1 |
