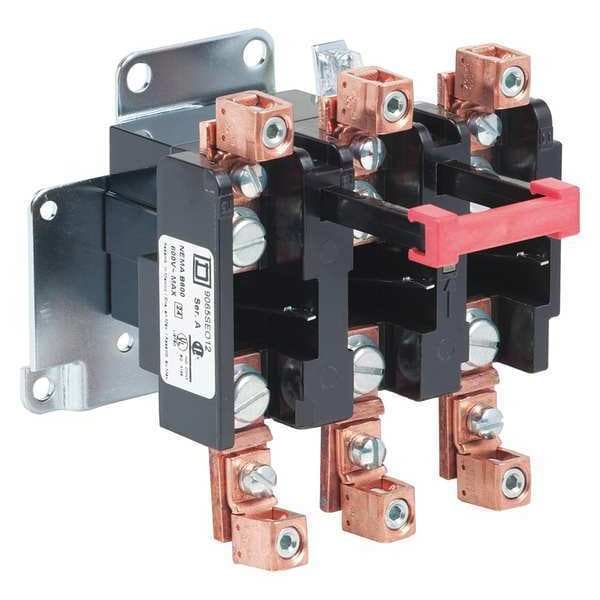

Relé de sobrecarga de aleación de fusión 600Vac 86A
| Item | Melting Alloy Overload Relay |
|---|---|
| Item - Relay | NEMA Style Overload Relay |
| NEMA Size | 3 |
| Width | 134.9 mm |
| Number of Poles | 3 |
| Thermal Units Required | Yes |
| Height | 142.1 mm |
| Reset Type - Relay | Manual |
| Depth | 146.1 mm |
| Voltage | 600 V AC |
| Standards | RoHS |
| Body Width - Relay | 5.31 in |
| Body Depth - Relay | 5.74 in |
| Body Height - Relay | 5-1/2 in |
| Separate Mounting | Yes |
| Overall Height - Relay | 5-1/2 in |
| Number Of Thermal Units Required | 3 |
| Thermal Overload Type | melting alloy |
| [Ue] Rated Operational Voltage | 600 V AC |
| Product Destination | starter |
| Mounting Support | panel |
| Product Or Component Type | relay |
| Compatible with Series | 9065 Motor Logic Solid State Overload Relays |
| Overall Height | 5.59 in |
| Maximum Overload Relay Current Setting | 86 A |
| Mounting Style | Separately Mounted |
| Maximum Voltage Rating | 600 V AC |
| Body Depth | 5-3/4 in |
| Body Width | 5.31 in |
| Reset Type | No Reset |
| Number of Required Thermals | 3 |
| Body Height | 5.59 in |
| Relay Style | NEMA |
| Auxiliary Contact Form | 1 NC |
| Overload Protection Type | Melting Alloy |
| Phase | Three |
| Includes Thermal Units | No |
| Package Quantity | 1 |
