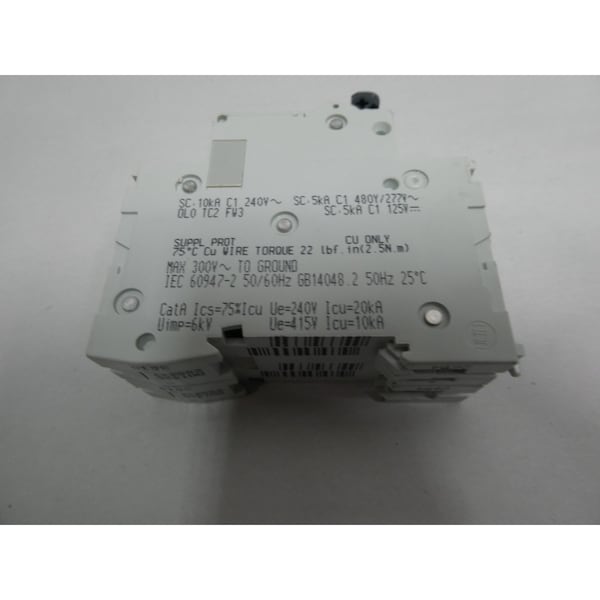

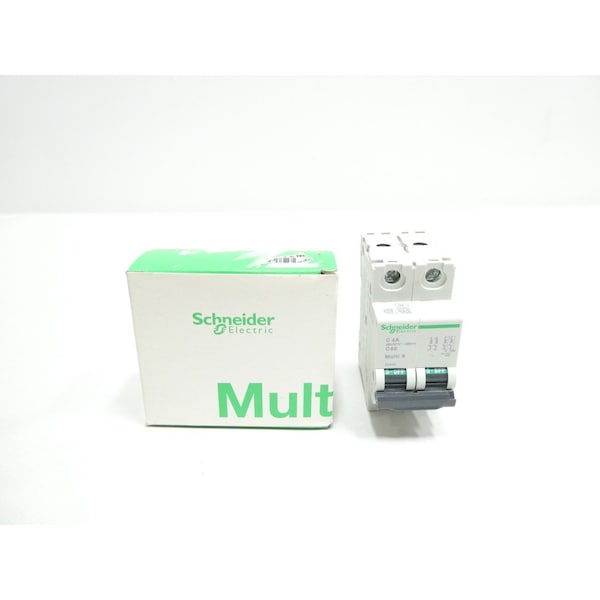

Miniature Circuit Breaker, C60 Series, 4A, 2 Pole, 277/480V AC, 20kA at 240V AC, C Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | C60 |
| Amps | 4A |
| Number of Poles | 2 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 20kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Tunnel |
| Width | 1.42 in |
| Depth | 2.87 in |
| Height | 3.19 in |
| DC Voltage Rating | 125V DC |
| Curve Type | C |
| Package Quantity | 1 |
