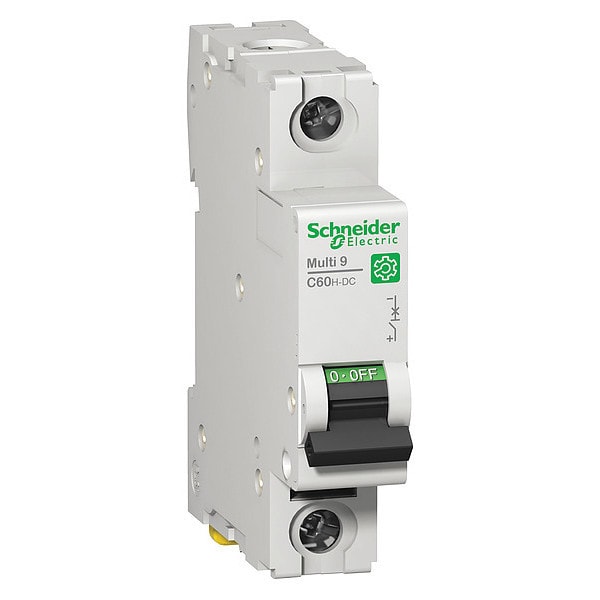

Miniature Circuit Breaker, C60H-DC Series, 10A, 1 Pole, Not Rated, 5kA at 250V DC, C Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | C60H-DC |
| Amps | 10A |
| Number of Poles | 1 |
| AC Voltage Rating | Not Rated |
| Circuit Breaker Type | Low Voltage |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 5kA at 250V DC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Width | 0.71 in |
| Depth | 2.87 in |
| Height | 81 mm |
| DC Voltage Rating | 250V DC |
| Curve Type | C |
| Application | Branch Circuit Protection |
| Min. Wire Size | 18 AWG |
| Standards | EN/IEC 60947-2, GB 14048.2, UL 1077 |
| Max. Wire Size | 4 AWG |
| Interrupt Rating | 7.5 kA at 220 V DC, 4.5 kA at 250 V DC, 15 kA at 110 V DC, 10 kA at 220 V DC, 6 kA at 250 V DC, 20 kA at 110 V DC, 5 kA at 12/250 V DC |
| Features | Mercury Free; Padlockable |
| Color | Gray |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.19 in |
| Mounting | Din Rail |
| Length | 3.19 in |
| Package Quantity | 1 |
