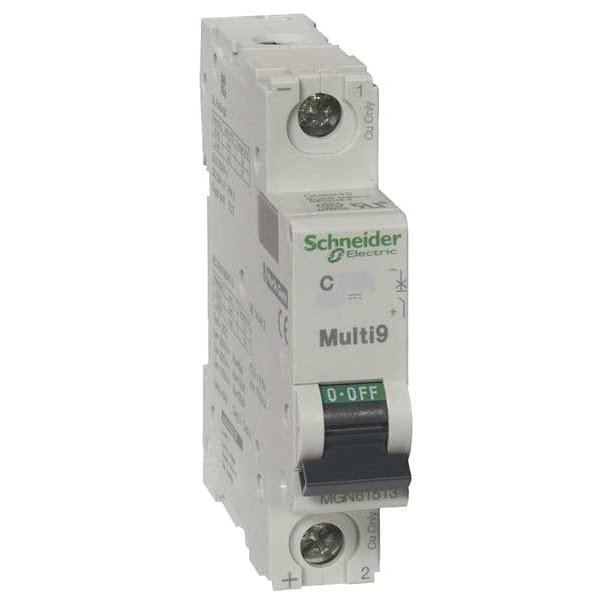

Miniature Circuit Breaker, C60H-DC Series, 5A, 1 Pole, Not Rated, 5kA at 250V DC, C Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | C60H-DC |
| Amps | 5A |
| Number of Poles | 1 |
| AC Voltage Rating | Not Rated |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 5kA at 250V DC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Width | 0.71 in |
| Depth | 2.87 in |
| Height | 3.19 in |
| DC Voltage Rating | 250V DC |
| Curve Type | C |
| Min. Wire Size | 14 AWG |
| Standards | CE, CSA, IEC, UL 1077 |
| Max. Wire Size | 2 AWG |
| Color | Gray |
| Interrupt Rating | 15 kA at 110 V DC, 7.5 kA at 250 V DC, 4.5 kA at 220 V DC, 10 kA at 220 V DC, 6 kA at 250 V DC, 20 kA at 110 V DC, 5 kA at 12/250 V DC |
| Application | Distribution |
| Features | Mercury Free; Padlockable |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.19 in |
| Length | 3.19 in |
| Mounting | Din Rail |
| Poles Description | 1P |
| Electrical Durability | 3000 cycles L/R = 2 ms |
| Rated Insulation Voltage | 500 V DC EN/IEC 60947-2 |
| Operating Altitude | 6,561.68 ft |
| Locking Options Description | In position O |
| Tropicalisation | 2 IEC 60068-2; 2 GB 14048.2 |
| Connections - Terminals | Tunnel type terminal top or bottom) 0.00 to 0.04 in² (1 to 25 mm²) AWG 18 to AWG 4) - rigid stranded; Tunnel type terminal top or bottom) 0.00 to 0.02 in² (1 to 16 mm²) AWG 18 to AWG 6) - flexible; Tunnel type terminal top or bottom) 0.00 to 0.02 in² (1 to 16 mm²) AWG 18 to AWG 6) - flexible with ferrule; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - rigid stranded; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - flexible; Tunnel type terminal top or bottom) - 2 0.00 to 0.02 in² (1 to 10 mm²) AWG 18 to AWG 8) - flexible with ferrule; Tunnel type terminal top or bottom) - 3 0.00 in² (1 mm²) AWG 18) - flexible stranded |
| Earth-Leakage Protection | Without |
| Rated Service Breaking Capacity | 15 kA 75% GB 14048.2 - 110 V DC; 15 kA 75% EN/IEC 60947-2 - 110 V DC; 7.5 kA 75% EN/IEC 60947-2 - 250 V DC; 4.5 kA 75% EN/IEC 60947-2 - 220 V DC; 7.5 kA 75% GB 14048.2 - 250 V DC; 4.5 kA 75% GB 14048.2 - 220 V DC |
| Product Certifications | IEC, CCC, UR |
| Magnetic Tripping Limit | 8.5 x In +/- 20% AC |
| Pollution Degree | 3 EN/IEC 60947-2 |
| Comb Busbar And Distribution Block Compatibility | Top or bottom standard |
| 9 mm Pitches | 2 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Rated Operational Voltage | 12 to 250 V DC |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Network Type | DC |
| Rated Impulse Withstand Voltage | 6 kVEN/IEC 60947-2 |
| Limitation Class | 3 EN/IEC 60947-2 |
| Mechanical Durability | 20,000 cycle |
| Local Signalling | ON/OFF indication |
| Contact Position Indicator | Yes |
| Suitability For Isolation | Yes EN/IEC 60947-2 |
| Provision For Padlocking | Padlockable |
| Product Name | Multi9 C60H-DC |
| Wire Stripping Length | 0.55 in |
| IP Degree Of Protection | IP20 conforming to IEC 60529; IP40 conforming to IEC 60529 |
| Utilisation Category | A EN IEC 60947-2, Category |
| Relative Humidity | 95% 131°F (55°C) |
| Overvoltage Category | IV |
| Tightening Torque | 22.13 lbf.in (2.5 N.m) top or bottom |
| Breaking Capacity | 10 kA Icu 220 V DC GB 14048.2; 6 kA Icu 250 V DC GB 14048.2; 20 kA Icu 110 V DC GB 14048.2; 20 kA Icu 110 V DC EN/IEC 60947-2; 10 kA Icu 220 V DC EN/IEC 60947-2; 6 kA Icu 250 V DC EN/IEC 60947-2; 5 kA AIR 12 to 250 V DC UL 1077 |
| Package Quantity | 1 |
