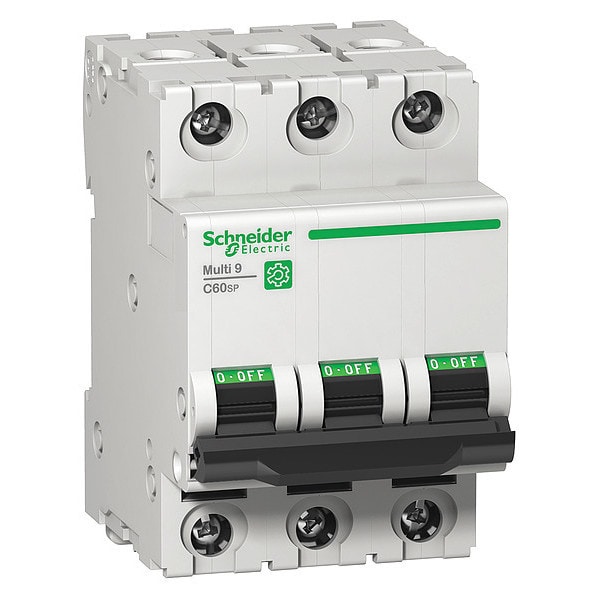

Miniature Circuit Breaker, C60SP Series, 40A, 3 Pole, 240/415/440V AC, 10kA at 240V AC, D Curve

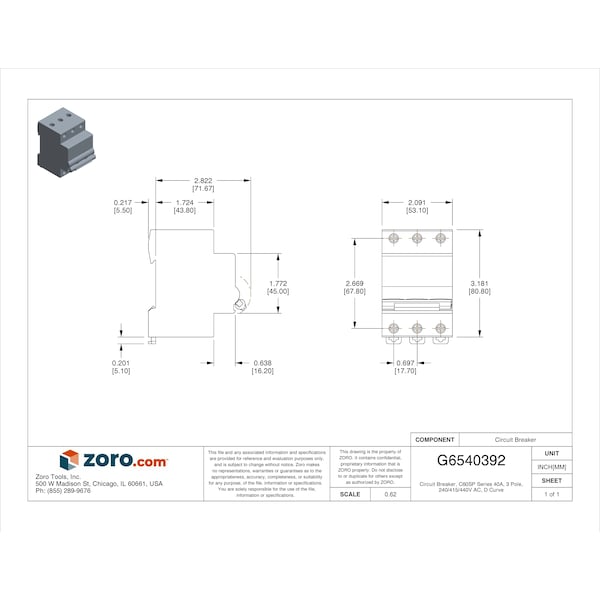

| CAD Available | Yes |
|---|---|
| Item | Miniature Circuit Breaker |
| Series | C60SP |
| Amps | 40A |
| Number of Poles | 3 |
| AC Voltage Rating | 240/415/440V AC |
| Circuit Breaker Type | Low Voltage |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Width | 2.13 in |
| Depth | 2.83 in |
| Height | 81 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | D |
| Max. Wire Size | 2 AWG |
| Standards | CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077 |
| Application | Branch Circuit Protection |
| Min. Wire Size | 18 AWG |
| Interrupt Rating | 4.5 kA at 440V AC, 7.5 kA at 415V AC, 15 kA at 240V AC, 10 kA at 240/415V AC, 6 kA at 440V, 20 kA at 240V AC, 5 kA at 480Y/277V AC |
| Color | Gray |
| Features | Mercury Free; Padlockable |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.19 in |
| Length | 3.19 in |
| Mounting | Din Rail |
| Package Quantity | 1 |
