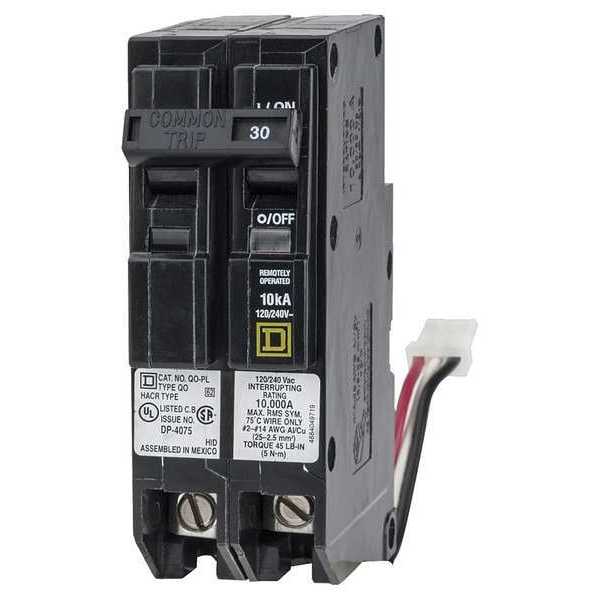

Miniature Circuit Breaker, QO Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | PowerLink |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Width | 1-1/2 in |
| Depth | 2.91 in |
| Height | 4.57 in |
| DC Voltage Rating | Not Rated |
| Dimensions | 4-3/5"H x 11/16"W x 3-1/4"D |
| Agency Compliance | UL, FCC |
| Standards | UL Listed |
| For Use With | Mfr. No. EER260LLCR |
| Features | Offers Remote Control Capability with Overload and Short-Circuit Protection of Your Electrical System, Accessory That Enables Remote Control of The Connected Device, Allows Devices to Be Managed Without Sacrificing Convenience or Comfort |
| Max. Wire Size | 2 AWG |
| Interrupt Rating | 10 kA at 120/240V AC |
| Min. Wire Size | 12 AWG |
| Application | Switching Duty rated Applications |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 4.55 in |
| Type | Smart Home |
| Connection | Breaker Panel |
| Voltage | 120/240 |
| Length | 4.55 in |
| Package Quantity | 1 |
