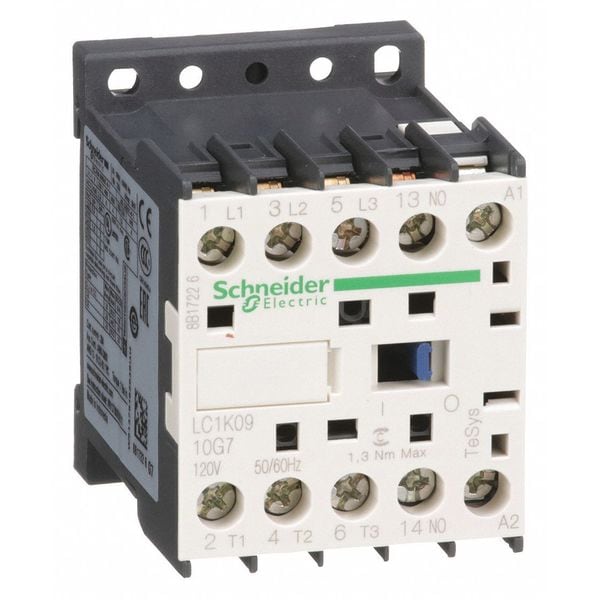

Contacto magnético IEC en miniatura, 3 polos, 120 V CA, 9 A, Reversión: No.
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1.5 |
| Height | 2.4 in |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| Width | 2.4 in |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 2-1/2 in |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Standards | CSA, UKCA, UL Listed |
| NEMA Size | Not Applicable |
| Series | TeSys K |
| Watts Loss | 1.3W |
| Switching Voltage | 17 V (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Rated Making Capacity | 110 A |
| Operating Time | 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing) |
| Working Height | 6,561.68 ft |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Application | Motor Control, Resistive Load |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Switching Current | 5 mA (Signalling Circuit) |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Inrush VA | 30 VA |
| Hold VA | 4.5 VA |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Overvoltage Category | CAT III |
| Impedance | 3 mOhm |
| Max. Operating Watts | 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW 380 to (at 415V AC 50/60 Hz AC-3), 4 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 415V AC 50/60 Hz AC-3e), 4 kW (at 440V AC 50/60 Hz AC-3e), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Overall Width | 2.4 in |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Overall Height | 2.4 in |
| Full Load Current - Resistive | 20 A |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 240V AC | 1.5 HP |
| Embedded Surge Suppressor | No |
| Maximum Voltage Rating | 480 V AC |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Number of Auxillary Contacts | 1 |
| Includes Auxiliary Contacts | Yes |
| Overall Depth | 2-1/2 in |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| NEMA Enclosure Rating | No Enclosure |
| Number of Normally Open Main Contacts | 3 |
| Resistance Properties | Insulation Resistant |
| Full Load Current - Inductive | 9 A |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Package Quantity | 1 |
