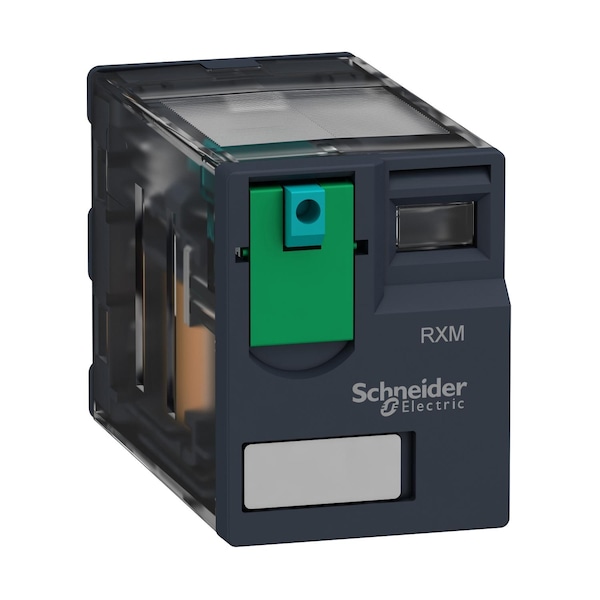

Relé enchufable en miniatura, 10 A, 3 contactos normalmente abiertos, 12 V CC voltios de bobina, 3 contactos normalmente cerrados.
| Item | Miniature plug-in relay,10 A,3 CO,12 |
|---|---|
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 10A @ 250V AC |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Contact Form - Relay | 3 C/O |
| Power Consumption - Relay | 0.9 W |
| Contact Material | AgNi |
| Features | Lockable Test Button |
| Standards | IEC 61810-1, CSA C22.2 No 14, UL 508 |
| Height | 79 mm |
| Protection Category | RT I |
| Average Coil Consumption | 0.9 W |
| Device Short Name | RXM |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50µs |
| Maximum Switching Voltage | 250 V IEC |
| Range of Product | Harmony Electromechanical Relays |
| Mechanical Durability | 10,000,000 cycle |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Reset Time | 20 msec |
| Continuous Output Current | 6.7 A |
| Operating Position | any position |
| Electrical Durability | 100000 cycles resistive |
| Operating Time | 20 msec |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| Contacts Type And Composition | O, 3 C |
| Test Levels | level A group mounting |
| Maximum Switching Capacity | 2500 VA/280 W |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Series Name | Miniature |
| Control Type | Lockable test button |
| Average Resistance | 160 Ohm 20°C +/- 10 % |
| Ambient Air Temperature For Operation | -40-55°C |
| Operating Rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Status Led | without |
| Dielectric Strength | 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Rated Operational Voltage Limits | 9.6...13.2 V DC |
| Device Presentation | complete product |
| Utilisation Coefficient | 0.2 |
| Shape of Pin | flat |
| [Ie] Rated Operational Current | 10 A 28 V DC) NO IEC, 10 A 250 V AC) NO IEC, 5 A 28 V DC) NC IEC, 5 A 250 V AC) NC IEC, 10 A 30 V DC) UL, 10 A 277 V AC) UL |
| Ambient Air Temperature For Storage | -40-85°C |
| Pollution Degree | 2 |
| Drop-Out Voltage Threshold | >= 0.1 Uc |
| Contacts Material | AgNi |
| Load Current | 10 A 250 V AC, 10 A 28 V DC |
| Shock Resistance | 10 gnin operation, 30 gnnot operating |
| Product or Component Type | plug-in relay |
| [Uc] Control Circuit Voltage | 12 V DC |
| Pin Shape | Flat |
| Series | RXM; Miniature |
| Switching Power | Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V |
| Current Rating | 10 A 28 V DC) NO IEC; 10 A 250 V AC) NO IEC; 5 A 28 V DC) NC IEC; 5 A 250 V AC) NC IEC; 10 A 30 V DC) UL; 10 A 277 V AC) UL; 6.7 A |
| Switching Voltage | 250 V IEC |
| Operating Temp. Range | -40-55°C |
| Coil Resistance | 160 ohms |
| Package Quantity | 1 |
