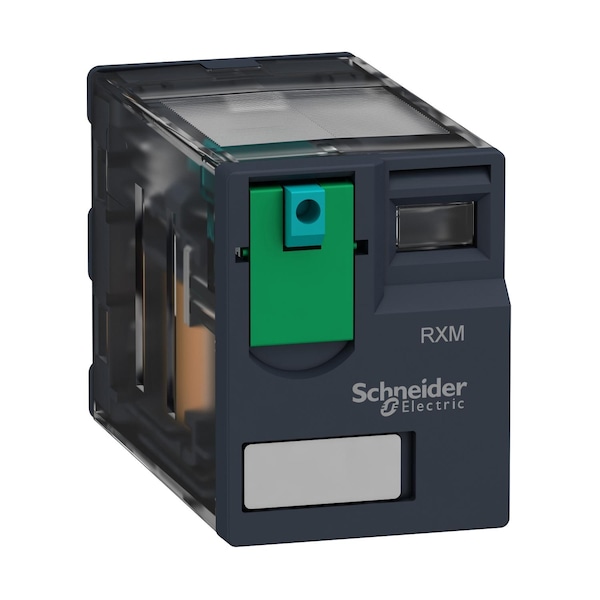

Relé enchufable en miniatura, 12 A, 2 NA, 110V CC, 2 NA
| Item | Miniature plug-in relay,12 A,2 CO,110 |
|---|---|
| Coil Volts | 110V DC |
| AC Contact Rating - Relay | 12A @ 250V AC |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Contact Form - Relay | 2 C/O |
| Power Consumption - Relay | 0.9 W |
| Contact Material | AgNi |
| Features | Lockable Test Button |
| Standards | UL 508; EN/IEC 61810-1; CSA C22.2 No 14; Lloyd's; CE; GOST |
| Current Rating | 12 A 28 V DC) NO IEC; 12 A 250 V AC) NO IEC; 6 A 28 V DC) NC IEC; 6 A 250 V AC) NC IEC; 12 A 28 V DC) UL; 12 A 277 V AC) UL; 0.416666666666667 |
| Coil Resistance | 13,440 ohms |
| Switching Voltage | 250 V IEC |
| Dielectric Strength | 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation |
| Pin Shape | Flat |
| Operating Temp. Range | -40-55°C |
| Operating Time | 20 msec |
| Protection Category | RT I |
| Series | RXM; Miniature |
| Switching Power | Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Resistive Rated Load | 12 A 250 V AC; 12 A 28 V DC |
| Device Presentation | complete product |
| Rated Insulation Voltage | 250 V IEC; 300 V CSA; 300 V UL |
| Rated Impulse Withstand Voltage | 4 kV 1.2/50 µs |
| Operating Rate | Less than or Equal to 1200 cycles/hour under load; Less than or Equal to 18000 cycles/hour no-load |
| Electrical Durability | 100000 cycles resistive |
| Operating Position | any position |
| Shock Resistance | 10 gnin operation; 30 gnnot operating |
| Rated Operational Current | 12 A 28 V DC) NO IEC; 12 A 250 V AC) NO IEC; 6 A 28 V DC) NC IEC; 6 A 250 V AC) NC IEC; 12 A 28 V DC) UL; 12 A 277 V AC) UL |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Vibration Resistance | 3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 5 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating |
| Pollution Degree | 3 |
| Average Coil Resistance | 13440 Ohm 20°C +/- 10% |
| Product Certifications | CSA, UL, CE, GOST, Lloyd's |
| Utilisation Coefficient | 0.2 |
| Rated Operational Voltage Limits | 88 to 121 V DC |
| Continuous Output Current | 10 A |
| Drop-Out Voltage Threshold | Greater than or Equal to 0.1 Uc |
| Ambient Air Temperature For Operation | -40 to 131°F |
| Control Circuit Voltage | 110 V DC |
| Product Or Component Type | Plug-in relay |
| Series Name | Miniature |
| Maximum Switching Capacity | 3000 VA/336 W |
| Status LED | Without |
| Test Levels | level A group mounting |
| Mechanical Durability | 10,000,000 cycle |
| Device Short Name | RXM |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| [Ie] Rated Operational Current | 12 A 28 V DC) NO IEC, 12 A 250 V AC) NO IEC, 6 A 28 V DC) NC IEC, 6 A 250 V AC) NC IEC, 12 A 28 V DC) UL, 12 A 277 V AC) UL |
| Average Resistance | 13440 Ohm 20°C +/- 10 % |
| Load Current | 12 A 250 V AC, 12 A 28 V DC |
| Range of Product | Harmony Electromechanical Relays |
| Package Quantity | 1 |
