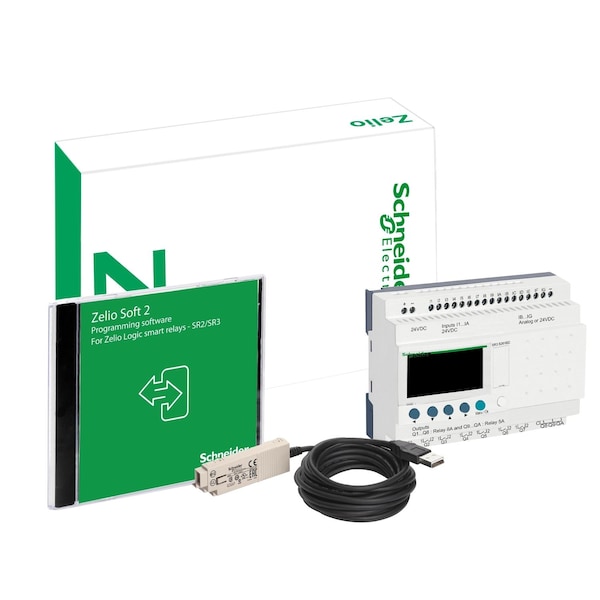

Paquetes de descubrimiento modular, Zelio Logic SR2 SR3, paquete de descubrimiento de relé inteligente, 26 E/S, 24V DC.
| Item | Zelio Sr3Pack Modular 26 Io 24Vdc |
|---|---|
| Clock | with |
| Coil Volts | 24VDC |
| Response Time | 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output |
| Standards | EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-12 || EN/IEC 60068-2-6 Fc || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-5 || EN/IEC 61000-4-6 level 3 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-3 || EN/IEC 61000-4-11 |
| Discrete Input Voltage | 24 V DC |
| Product Or Component Type | modular discovery packs |
| Number Or Control Scheme Lines | 120-120 ladder |
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2 |
| Voltage State 0 Guaranteed | <= 5 V I1 to IA and IH to IR discrete input circuit || <= 5 V IB to IG used as discrete input circuit |
| Discrete Input Number | 16 EN/IEC 61131-2 type 1 |
| Immunity To Microbreaks | 1 msec |
| Input Compatibility | 3-wire proximity sensors PNP discrete input |
| Current State 1 Guaranteed | >= 1.2 mA IB to IG used as discrete input circuit) || >= 2.2 mA I1 to IA and IH to IR discrete input circuit) |
| Conversion Error | +/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit |
| Output Thermal Current | 5 A for 2 outputs relay output || 8 A for 8 outputs relay output |
| Relative Humidity | 95-95 % without condensation or dripping water |
| [Uimp] Rated Impulse Withstand Voltage | 4 kVEN/IEC 60947-1 and EN/IEC 60664-1 |
| Electrical Durability | AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Discrete Input Type | resistive |
| Mechanical Durability | 10000000 cycles relay output |
| Discrete Input Current | 4 mA |
| Analogue Input Type | common mode |
| Repeat Accuracy | +/- 2 % 55°C analogue input circuit |
| Number of outputs | 10 relay |
| Lsb Value | 39 mV |
| Output Voltage Limits | 24 to 250 V AC relay output) || 5 to 30 V DC relay output) |
| Kit Composition | cable PC SR2USB01 for connection to PC || SR3B261BD |
| Maximum Altitude Transport | 3048 m |
| Temperature Probe Type | NTC 10k 25 °C || NTC 1000k 25 °C || KTY81 210/220/221/222/250 || Pt 500 |
| Contacts Type And Composition | NO relay output |
| Analogue Input Number | 6 |
| Input Impedance | 12 kOhm IB to IG used as analogue input circuit || 12 kOhm IB to IG used as discrete input circuit || 7.4 kOhm I1 to IA and IH to IR discrete input circuit |
| [Us] Rated Supply Voltage | 24 V |
| Maximum Supply Current | 190 mA without extension) || 300 mA with extensions) |
| Operating Altitude | 6561.68 ft (2000 m) |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Voltage State 1 Guaranteed | >= 15 V I1 to IA and IH to IR discrete input circuit || >= 15 V IB to IG used as discrete input circuit |
| Analogue Input Resolution | 8 bits |
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output || 10 Hz no load)relay output |
| Current State 0 Guaranteed | <= 0.5 mA IB to IG used as discrete input circuit) || <= 0.75 mA I1 to IA and IH to IR discrete input circuit) |
| Pollution Degree | 2 EN/IEC 61131-2 |
| Ip Degree Of Protection | IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel) |
| Environmental Characteristic | EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2 |
| Cycle Time | 6 to 90 msec |
| Analogue Input Range | 0 to 10 V || 0 to 24 V |
| Checks | program memory on each power up |
| Local Display | with |
| Input/Output Number | 26 |
| Backup Time | 10 years 25 °C |
| Product Certifications | GOST || GL || UL || CSA || C-tick |
| Counting Frequency | 1 kHz discrete input |
| Conversion Time | smart relay cycle time analogue input circuit |
| Reverse Polarity Protection | with |
| Power Dissipation In W | 10 W with extensions || 6 W without extension |
| Tightening Torque | 0.5 N.m |
| Supply Voltage Limits | 19.2-30 V |
| Operating Distance | 10 m between stations, with screened cable (sensor not isolated) analogue input circuit |
| Maximum Permissible Voltage | 30 V (analogue input circuit) |
| Overvoltage Category | IEC 60664-1, III EN |
| Connections - Terminals | screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mm² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mm² AWG 24 to AWG 18) flexible with cable end |
| Clock Drift | 12 min/year 0-55 °C || 6 s/month 25-25 °C |
| Range of Product | Zelio Logic |
| Pvc Free | Yes |
| Package Quantity | 1 |
